HOT RODS CON ROD KTM SX50 01-18, GAS GAS MC50 2021>, HUSQ TC50 17-21

Heavy-duty connecting rod kit designed as a direct OE replacement, offering superior strength and durability. Constructed from certified 8620 AISI steel, this kit provides reliable performance for high-rpm applications. Advanced design minimizes bearing race distortion and ensures long-lasting functionality. Fully compatible with Hot Rods and OE crankshafts.

Features:

• Manufactured from certified 8620 AISI steel for exceptional strength and durability.
• Big end design features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc.
• Latest caged needle roller bearing designs for enhanced longevity at high rpm.
• Thrust washers made from bronze phosphor and silver-coated for improved lubricity.

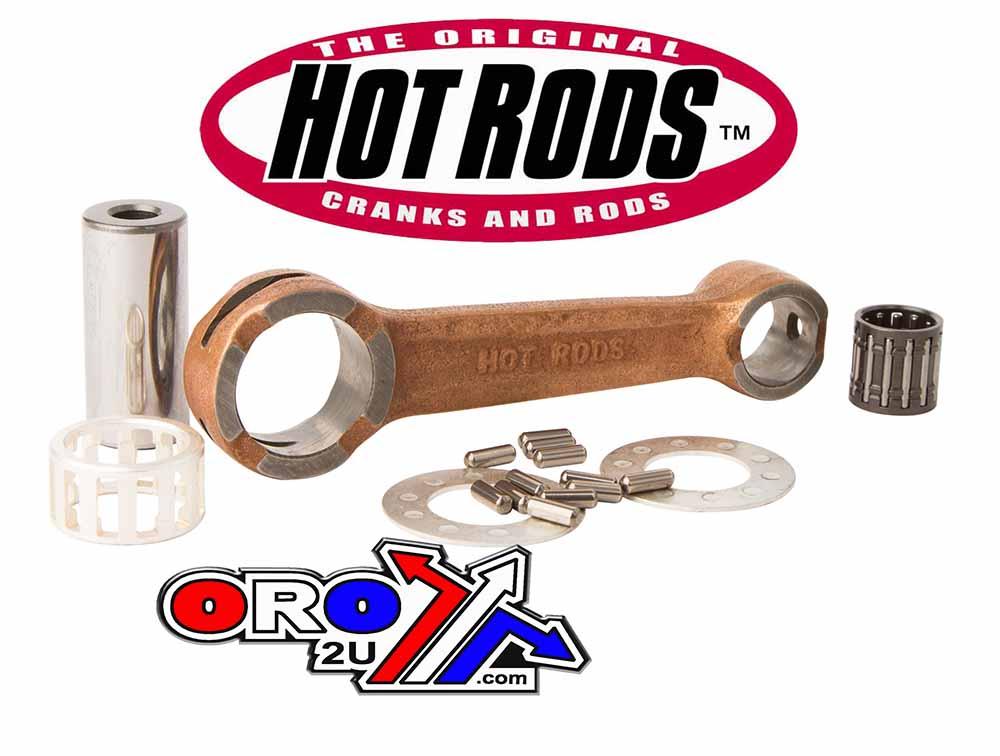

• Complete rod assembly includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.
• Made in the U.S.A.

Technical Specifications:

• Big End Bore (mm): 22.00
• Big End Width (mm): Not specified
• Center to Center (mm): 85.00
• Pin Diameter (mm): 16.00
• Pin Length (mm): 36.00
• Small End Bore (mm): 15.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 0.85

Vehicle Compatibility:

KTM:

• 2018 KTM 50 SX
• 2017 KTM 50 SX
• 2016 KTM 50 SX
• 2015 KTM 50 SX
• 2014 KTM 50 SX
• 2013 KTM 50 SX
• 2012 KTM 50 SX
• 2011 KTM 50 SX
• 2010 KTM 50 SX
• 2009 KTM 50 SX
• 2017 KTM 50 SX Mini
• 2016 KTM 50 SX Mini
• 2015 KTM 50 SX Mini
• 2014 KTM 50 SX Mini
• 2006–2008 KTM 50 SX Pro Jr
• 2004–2005 KTM 50 SX Pro Junior LC
• 2004–2005 KTM 50 SX Pro Sr

Husqvarna:

• 2018 Husqvarna TC50
• 2017 Husqvarna TC50

Part Number: 8135

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
