HOT RODS CON ROD KTM 530 EXC 2008-2011, 530 XC-W 2011

High-quality connecting rod kit designed to meet or exceed OEM standards for durability and performance. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit ensures exceptional strength and reliability under demanding conditions. Advanced design features minimize high-rpm bearing race distortion, while precise manufacturing enhances overall performance and longevity.

Features:

• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged construction improves grain flow and maintains dimensional consistency.
• Shot-peened and double-honed rods provide superior strength under heavy loads.
• Double-drilled small ends for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for improved lubricity.

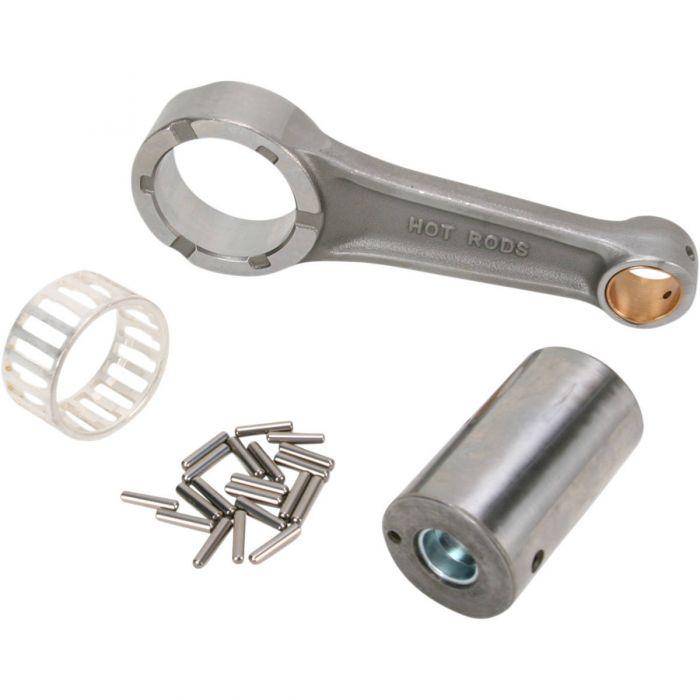

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing (mm): KU 35x42x19.8
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.90
• Center to Center (mm): 120.00
• Pin Diameter (mm): 35.00
• Pin Length (mm): 62.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 19.00

Cross-Reference OEM Part Numbers:
78630015144, WOSSNER P4047, HOTROD 8692

Vehicle Compatibility:

• 2011 KTM 530 EXC
• 2010 KTM 530 EXC
• 2009 KTM 530 EXC
• 2011 KTM 530 XC-W Six Days

Part Number: 56-868.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
