HOT RODS CON ROD KTM 200 EXC 98-16, MXC 98-03, SX 03-05, XC 06-09

High-quality connecting rod kit designed for durability and high-performance applications. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, the rods feature advanced scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. Double-forged rods improve grain flow and dimensional consistency, while shot-peening and double-honing enhance strength for heavy-load applications.

The small ends are double-drilled for optimal lubrication and cooling, critical for wrist pin bearings in high-stress conditions. Silver-coated thrust washers and crank pin bearings add lubricity and reliability. The kit is sold complete with all necessary components for installation.

Features:

• Made from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Scalloped vent slots in the big end reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional stability.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends provide additional lubrication and cooling for wrist pin bearings.
• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

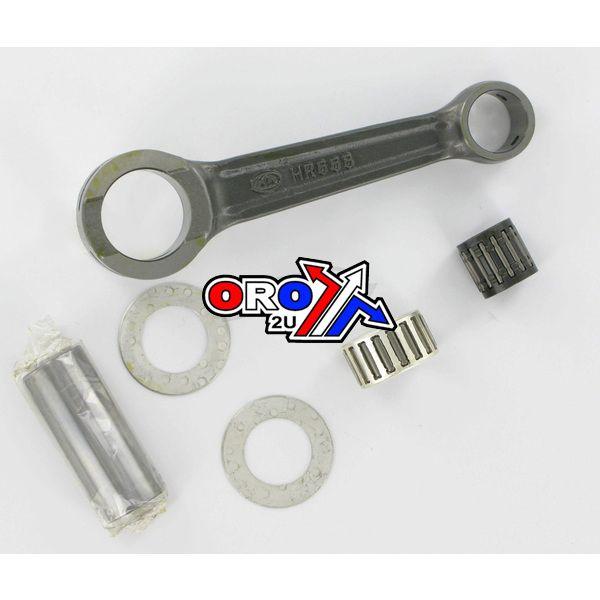

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bearing: 22x28x15.8 mm
• Big End Bore: 28.00 mm
• Big End Width: 15.90 mm
• Center to Center: 118.00 mm
• Pin Diameter: 22.00 mm
• Pin Length: 54.90 mm
• Small End Bore: 20.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• KTM: 52330015100
• Hot Rods: 8668

Vehicle Fitments:

• KTM 200 EXC: 1998–2005
• KTM 200 MXC: 1998–2003
• KTM 200 SX: 2003–2004
• KTM 200 XC: 2006–2009
• KTM 200 XC-W: 2006–2016

Part Number: 56-865.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
