HOTRODS CON ROD KIT KTM 250 EXC-F 07-13, SX-F 06-12, HUSABERG FE250 13

High-quality connecting rod kit designed for performance and durability. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, the rods feature advanced engineering to handle high RPM demands. Strategically placed scalloping and vent slots in the big end minimize bearing race distortion under extreme conditions.

Double-forged rods improve grain flow and dimensional consistency, while shot-peening and double-honing enhance strength for heavy-load applications. The small ends are double-drilled for superior lubrication and cooling, particularly useful when the piston crown is close to the wrist pin bearing. The kit includes silver-coated thrust washers and crank pin bearings for enhanced lubricity, sold complete with all necessary components.

Features:

• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Advanced scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends provide increased lubrication and cooling for wrist pin bearings.
• Silver-coated thrust washers and crank pin bearings for improved lubricity.

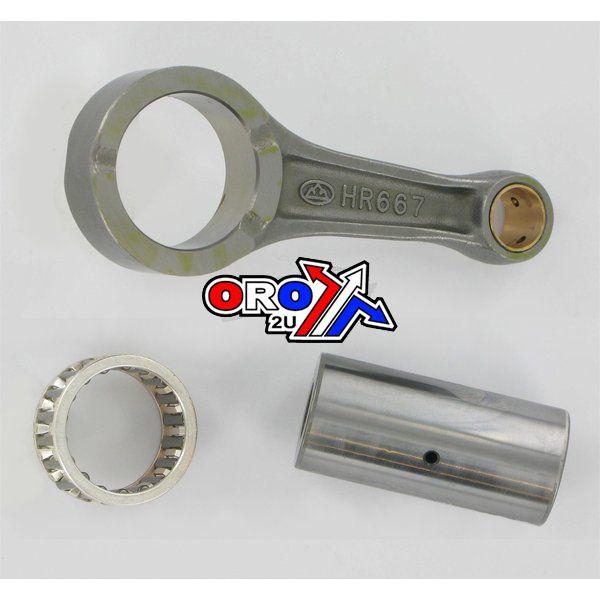

• Complete kit with rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications:

• Big End Bore: 38.00 mm
• Center to Center: 98.00 mm
• Pin Diameter: 30.00 mm
• Pin Length: 53.70 mm
• Small End Bore: 16.00 mm

Cross-Reference OEM Part Numbers:

• Athena P40321042
• Psychic MX-09038
• ProX 03.6326
• Wossner P4003
• Hot Rods 8667
• 77030015144
• 77030015244

Vehicle Fitments:

• KTM 250 SX-F: 2005–2015
• KTM 250 XC-F: 2007–2015
• KTM 250 XCF-W: 2008–2013
• KTM 250 SXS-F: 2006–2008
• KTM 250 EXC-F: 2006–2007
• KTM 350 SX-F: 2013–2015

Part Number: 56-864.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
