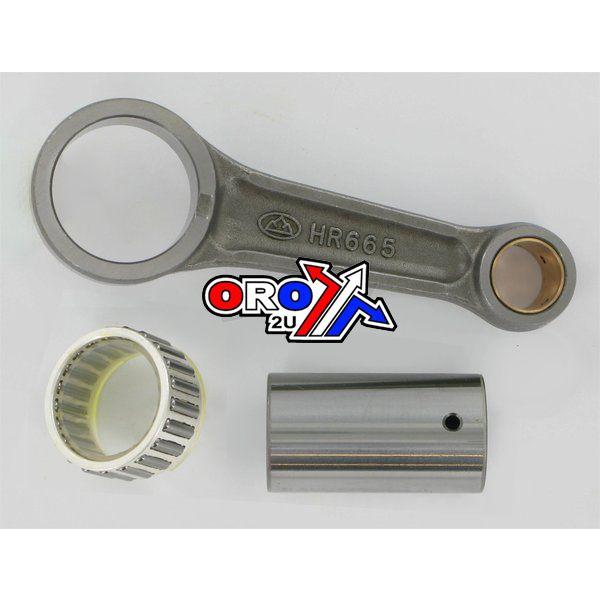

HOT RODS CON ROD KTM SX-F450 05-06, SMR450 05-06, XC450 06-07

Heavy-duty Hot Rods Connecting Rod Rebuild Kit designed as an OE replacement for select KTM 450 models. This kit provides exceptional performance and durability, making it ideal for high-demand applications.

Features:

• Includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Compatible with Hot Rods and OE crankshafts.
• Made from certified 8620 AISI steel for superior strength and reliability.
• Strategically designed big end with side scalloping and vent slots to reduce high RPM bearing race distortion.
• Crankpins manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc.
• Incorporates advanced caged needle roller bearings for long-lasting high-RPM performance.
• Bronze phosphor thrust washers with silver coating for added lubricity and wear resistance.

Technical Specifications:

• Big End Bearing (mm): 32 x 41 x 19.8
• Big End Bore (mm): 41.00
• Big End Width (mm): 19.90
• Center to Center (mm): 119.10
• Pin Diameter (mm): 32.00
• Pin Length (mm): 64.70
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 20.00

Cross-Reference OEM Part Numbers:

• KTM 59430015044

Vehicle Fitments:

• KTM 450 SMR (2005–2007)
• KTM 450 SX-F (2005–2006)
• KTM 450 XC (2006–2007)

Part Number: 56-862.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
