HOT RODS CON ROD KIT KTM SX-F450 07-12, SMR450 08-12

High-quality Hot Rods Connecting Rod Kit designed for KTM 450 models, providing a durable and reliable solution for engine rebuilds. This kit ensures optimal performance under demanding conditions.

Features:

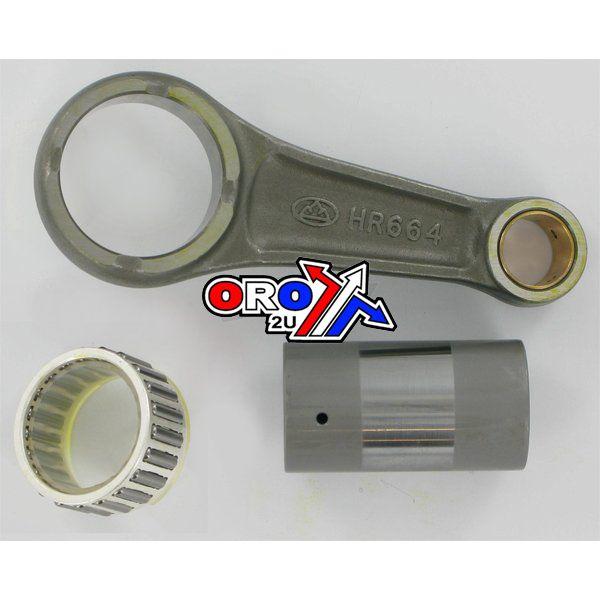

• Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
• Advanced design with side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for added lubricity and wear resistance.

Technical Specifications:

• Big End Bearing (mm): 35 x 42 x 19.7
• Big End Bore (mm): 42.00
• Big End Width (mm): N/A
• Center to Center (mm): 107.40
• Pin Diameter (mm): 35.00
• Pin Length (mm): 64.00
• Small End Bore (mm): 19.00
• Small End Width (mm): N/A
• Washer Thickness (mm): N/A

Cross-Reference OEM Part Numbers:

• KTM 77330015144
• KTM 77330015244

Vehicle Fitments:

• KTM 450 SMR (2008)
• KTM 450 SX-F (2007–2012)
• KTM 450 XC (2008–2009)
• KTM 450 XC-F (2008–2009)

Part Number: 56-861.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
