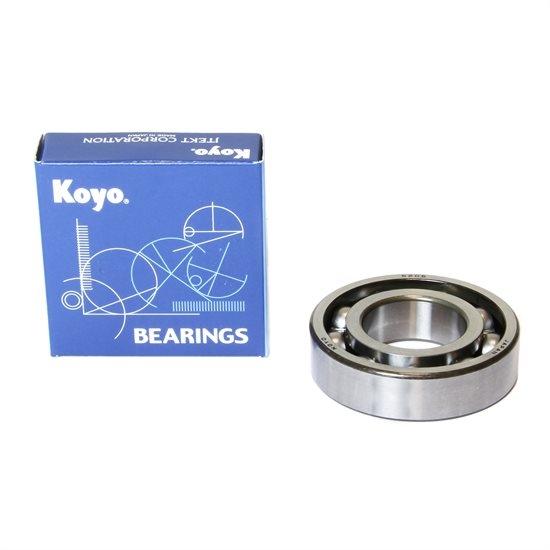

KOYO CRANK BEARING KAWASAKI KX500 83-04, L/H CRANK BEARING KLX250 94-96

High-quality KOYO 6306 C3 open deep groove ball bearing (30x72x19mm). Designed without seals for free circulation of oil or grease, this bearing is ideal for gearboxes and similar environments where a lubricant supply is available, and no contaminants are present. Manufactured in Japan to meet exacting standards, this bearing provides reliable performance and durability.

Features:

• Open design for free circulation of oil or grease.
• Suitable for transmissions and environments with controlled lubrication.
• Cost-effective, durable solution for various applications.
• Made in Japan for superior quality and reliability.

Specifications:

• Inner Diameter (d): 30mm.
• Outer Diameter (D): 72mm.
• Width (B): 19mm.
• Min Radius (r): 1.1mm.
• Dynamic Load: 26.7 kN.
• Static Load: 15 kN.

Maximum Speed:

• In Oil: 12,000 rpm.
• In Grease: 6,400 rpm.

Cross-Reference OEM Part Numbers:

• 92045-1290.
• 92045-1027.
• 23.6306C3.

Vehicle Fitments:

• Suzuki: DR350 (1990–1999), DR350SE (1990–1999).
• Honda: XL250S (1979–1983).
• Yamaha: YZ465 (1980–1981), YZ490 (1982–1990), XT225 (1992–2007).
• Kawasaki: 650 SX (JS650) (1987–1993). 750 SS (JH750) (1995–1997). 750 STX (JT750) (1998). 750 SX (JS750) (1992–1995). 750 SXi (JS750) (1995–1996). 750 SXi Pro (JS750) (1998–2002). 750 ZXi (JH750) (1995–1997). 800 SX-R (JS800) (2003–2011). KX500 (1983–2004). SC650 (JL650) (1991–1995).

Part Number: 56-514.C3.KOYO

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
