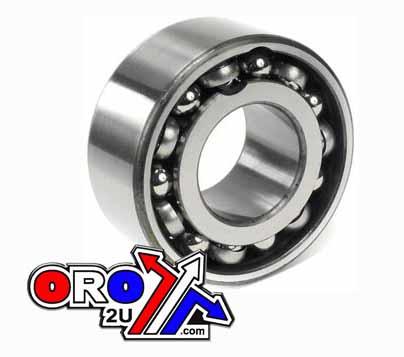

BEARING 3205 C3 25x52x20.60, Angular Contact Bearing

High-performance 3205 C3 double-row angular contact ball bearing (25x52x20.6). Designed with a polyamide cage and C3 clearance, this bearing offers superior support for combined radial and axial loads while providing a rigid arrangement to accommodate tilting moments effectively.

Features:

• Double-row angular contact design for managing combined loads.
• Polyamide cage for smooth operation and durability.
• C3 clearance for enhanced performance in high-speed or thermal expansion applications.
• Rigid bearing arrangement, suitable for applications with tilting moments.

Specifications:

• Inner Diameter (d): 25mm.
• Outer Diameter (D): 52mm.
• Width (B): 20.6mm.
• Dynamic Load: 21.6kN.
• Static Load: 14.3kN.
• Fatigue Load Limit: 0.6kN.
• Reference Speed: 12,000 r/min.
• Limiting Speed: 12,000 r/min.
• Mass: 0.18kg.

Additional Dimensions:

• d2: 32.7mm.
• D2: 45.9mm.
• r1r2 Min: 1mm.
• a: 30mm.
• da Min: 30.6mm.
• Da Max: 46.4mm.
• ra Max: 1mm.

Applications:

• Suitable for use in machinery and equipment requiring robust performance under combined loading conditions.

Part Number: 56-505
