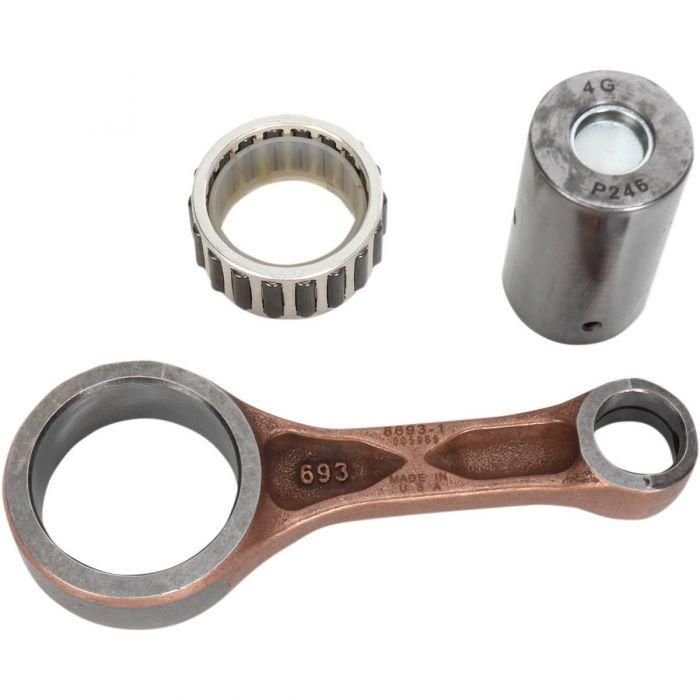

HOT RODS CON ROD KIT KTM 350 SX-F 11-12, EXC-F 12-16, XC-F 11-12

High-quality connecting rod kit designed for KTM and Husaberg models, including KTM 350 EXC-F, SX-F, XC-F, and XCF-W bikes as well as Husaberg equivalents. Manufactured from durable ASTM 4115 material and case-hardened for superior strength, this kit is engineered to withstand high-performance demands while minimizing bearing race distortion at high RPMs.

Features:

• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for exceptional strength under heavy loads.
• Strategically designed with side scalloping and vent slots to reduce high RPM distortion.
• Double-drilled small ends for enhanced lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.

Technical Specifications:

• Big End Bore: 41.00 mm
• Center to Center: 102.00 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm

Included Items:

• (1) Connecting rod
• (1) Crankshaft pin
• (1) Connecting rod bearing

Cross-Reference OEM Part Numbers:

• KTM: 77230015044
• KTM: 77230115044
• HUSABERG: 77230115044

Vehicle Fitments:

KTM:

• 2012–2016 KTM 350 EXC-F
• 2011–2012 KTM 350 SX-F
• 2011–2012 KTM 350 XC-F
• 2012–2013 KTM 350 XCF-W

HUSABERG:

• Equivalent models to above KTM fitments.

Part Number: 56-2984.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
