NAMURA CON ROD KIT YAMAHA WR250F 15-23, YZ250F 14-24, YZ250FX 15-23
NAMURA CON ROD KIT YAMAHA WR250F 15-23, YZ250F 14-24, YZ250FX 15-23
Couldn't load pickup availability
YAMAHA
YZF250 YZ250F 2014-2018,
WRF250 WR250F 2015-2018,
WRF250X WR250FX 2015-2018,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09049
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

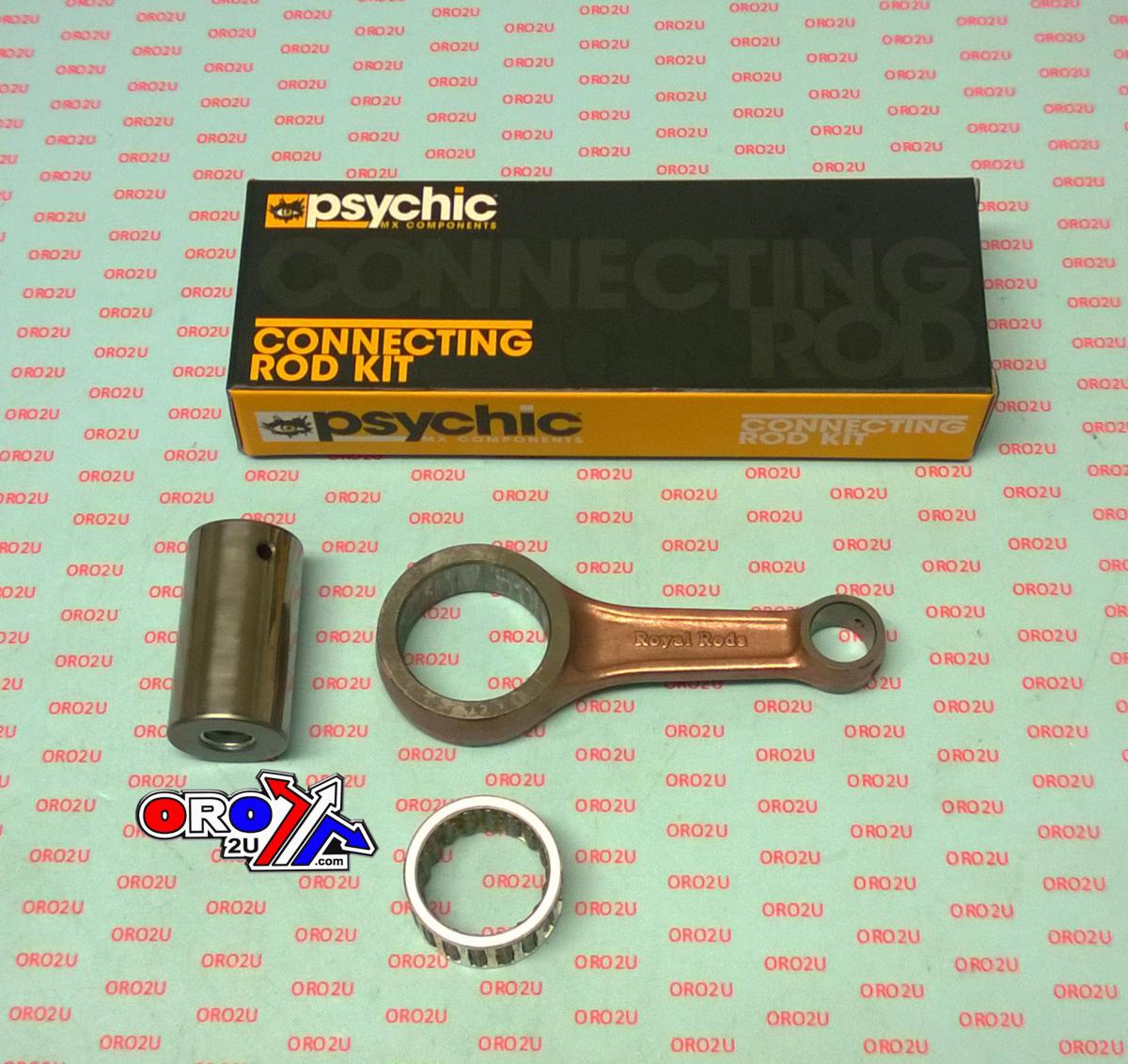

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,8620,
| SIZE | MM |
| Centre 2 Centre | 92.20 |
| Small End Bearing | None |
| Small End Bore � | 16 |
| Small End Width | 15 |
| Big End Bearing | 30x38x17.7 |
| Big End Bore � | 38 |
| Big End Width | 18 |
| Big End Pin � | 30 |
| Big End Pin Length | 54.80 |
| Washer Thickness | None |
Part No. 56-2968.DR (oro2u.com)
Cross reference numbers ONLY.
RY-2222, 5UL-11651-00-00 5XC-11651-00-00, 1SM116510100, 1SM-11651-01-00, HOTRODS 8706, PROX 03.2414, WOSSNER P4063, 1SM-11651-00-00, ATHENA P40321021
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
