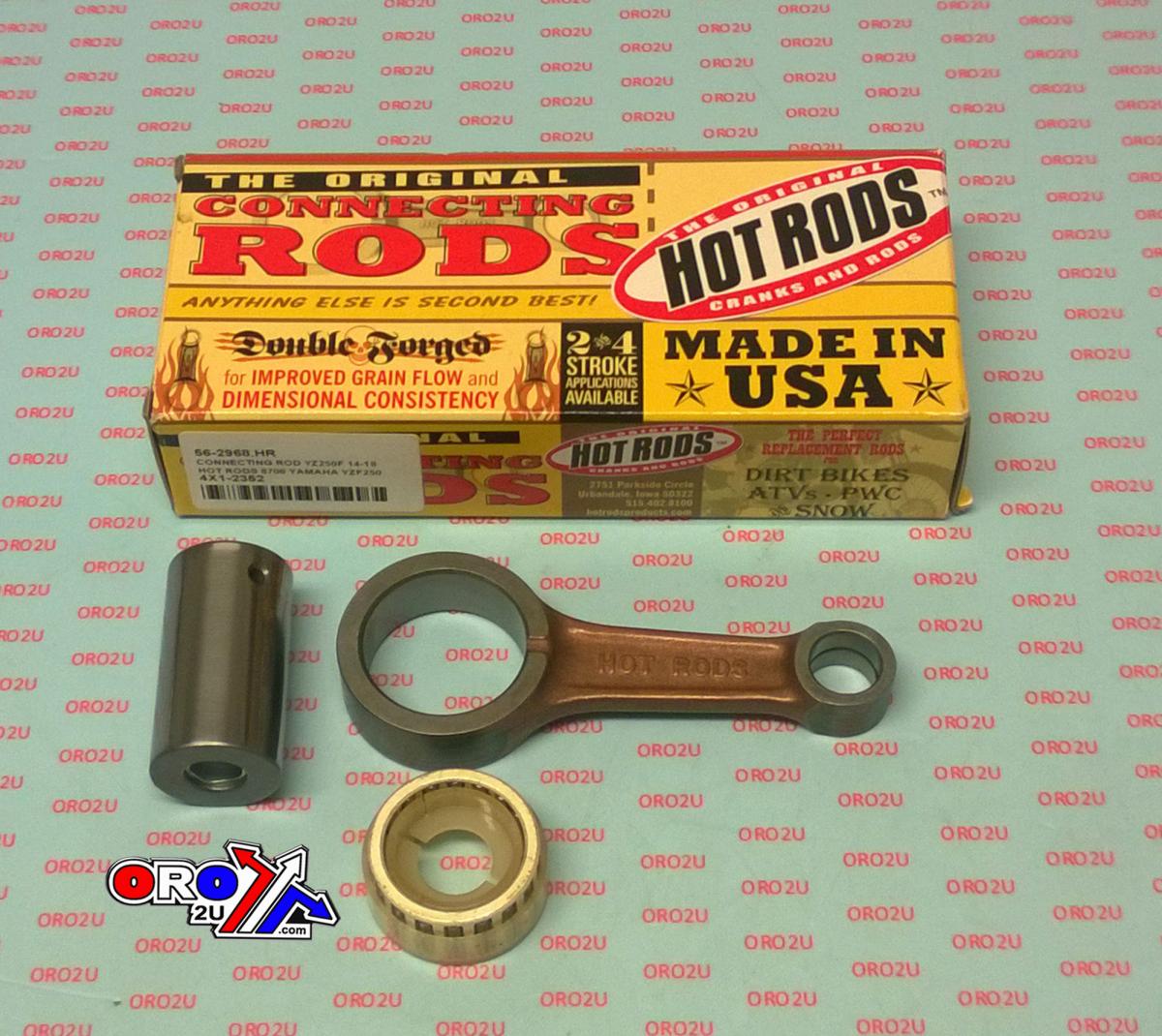

HOT RODS CON ROD KIT YAMAHA WR250F 15-23, YZ250F 14-24, YZ250FX 15-23

Heavy-duty connecting rod kit designed for select Yamaha WR250F, YZ250F, and YZ250FX models. Engineered for exceptional durability and performance, this kit is compatible with both OE and Hot Rods crankshafts.

Features:

• Heavy-duty OE replacement connecting rod for superior performance.
• Made from certified 8620 AISI steel for exceptional strength.
• Big end features side scalloping vent slots to minimize high-RPM bearing race distortion.
• Crankpins manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62Rc for durability.
• Utilizes the latest caged needle roller bearing designs for longevity at high RPM.
• Silver-coated bronze phosphor thrust washers enhance durability.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Made in the U.S.A.

Included Items:

• (1) Connecting rod
• (1) Connecting rod bearing
• (1) Crankshaft pin

Technical Specifications:

• Big End Bearing (mm): 30 x 38 x 17.8
• Big End Bore (mm): 38.00
• Big End Width (mm): 17.95
• Center to Center (mm): 92.50
• Pin Diameter (mm): 30.00
• Pin Length (mm): 54.80
• Small End Bore (mm): 16.00
• Small End Width (mm): 15.05

Cross-Reference OEM Part Numbers:

• Yamaha: 1SM-11651-00-00

Vehicle Fitment:

• Yamaha WR250F (2015–2018)
• Yamaha YZ250F (2014–2018)
• Yamaha YZ250FX (2015–2019)

Part Number: 56-2968.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
