NAMURA CON ROD KIT POLARIS SPORTSMAN 400 08-13, 450 06-07, 500 01-13
NAMURA CON ROD KIT POLARIS SPORTSMAN 400 08-13, 450 06-07, 500 01-13
Couldn't load pickup availability
POLARIS ATV
SPORTSMAN 400 HO 4X4 2008-13
HAWKEYE 400 HO 2X4 2011-13
SPORTSMAN 450 2006-07
ATP 500 4X4 2004-05
SCRAMBLER 500 1999-00
SCRAMBLER 500 4X4 2001-12
SCRAMBLER 2X4 INTL 2008-09
SPORTSMAN 500 2004
SPORTSMAN 500 EFI TRACTOR 2009-10
SPORTSMAN 500 EFI/HO 2001-11
SPORTSMAN 500 HO 2012-13
SPORTSMAN FOREST 500 2011-13
SPORTSMAN FOREST TRACTOR 500 2011-12
SPORTSMAN TOURING 500 EFI 2008-09
SPORTSMAN TOURING 500 EFI QUAD 2008-09
SPORTSMAN TOURING 500 HO 2010-13
SPORTSMAN X2 500 EFI/EFI QUAD 2006-09
WORKER 500 2001
POLARIS UTV
RANGER 400 4X4/HO 4X4 2010-12
RANGER 400 MIDSIZE 2013
RANGER 500 4X4 EFI 2006-07

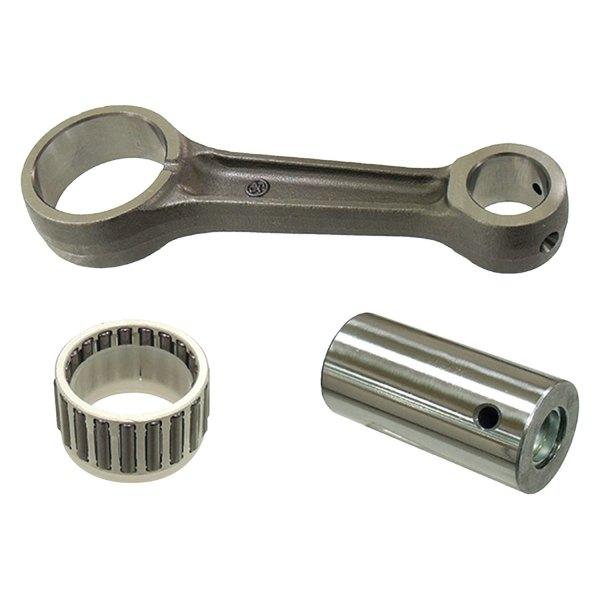

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09191
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220/420,
| SIZE | MM |
| Centre 2 Centre | 127.50 |
| Small End Bearing | None |
| Small End Bore � | 23 |
| Small End Width | 22 |
| Big End Bearing | 34x43x21.7 |
| Big End Bore � | 43 |
| Big End Width | 22 |
| Big End Pin � | 34 |
| Big End Pin Length | 70.8 |
| Washer Thickness | None |
Part No. 56-2952 (oro2u.com)
Cross reference numbers ONLY.
3085813 / 3090273
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
