CON ROD KIT YAMAHA DT50 88-90 YZ50 80, YZ80 74-80, YSR50 87-92, LB50/80
CON ROD KIT YAMAHA DT50 88-90 YZ50 80, YZ80 74-80, YSR50 87-92, LB50/80
Couldn't load pickup availability
YAMAHA
DT50 / DT80 / YZ50 / YZ80/ V50 / YB50 / LB80,
MP/MC 1964-65 YJ1 1964-65,
YJ2 1984 CV50L 1983-87,
CV80 (RIVA) 1973 GT1
CONNECTING CONROD ROD REBUILD KIT.
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

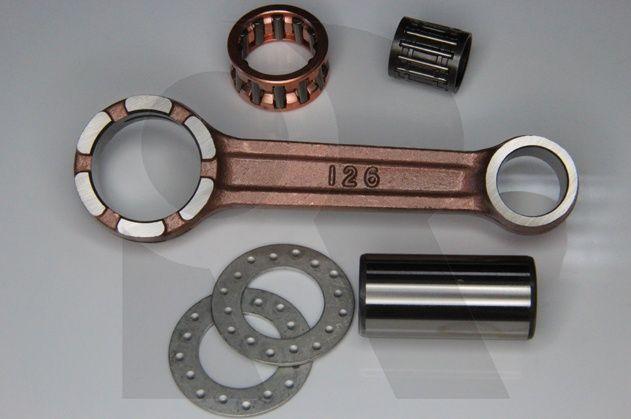

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220/420,
| SIZE | MM |
| Centre 2 Centre | 84 |
| Small End Bearing | 12x15x16.5 |
| Small End Bore Ø | 22 |
| Small End Width | 15.60 |
| Big End Bearing | 18x24x11.6 |
| Big End Bore Ø | 31 |
| Big End Width | 11.60 |
| Big End Pin Ø | 18 |
| Big End Pin Length | 37 |
| Washer Thickness | 18x31x1 |
Part No. 56-2940.DR
Cross reference numbers ONLY.
RY-2001/126, 126-11651-00-00, PROX 03.2002, 126-11651-00-00, 3R1-11651-01-00, RX-40003
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
