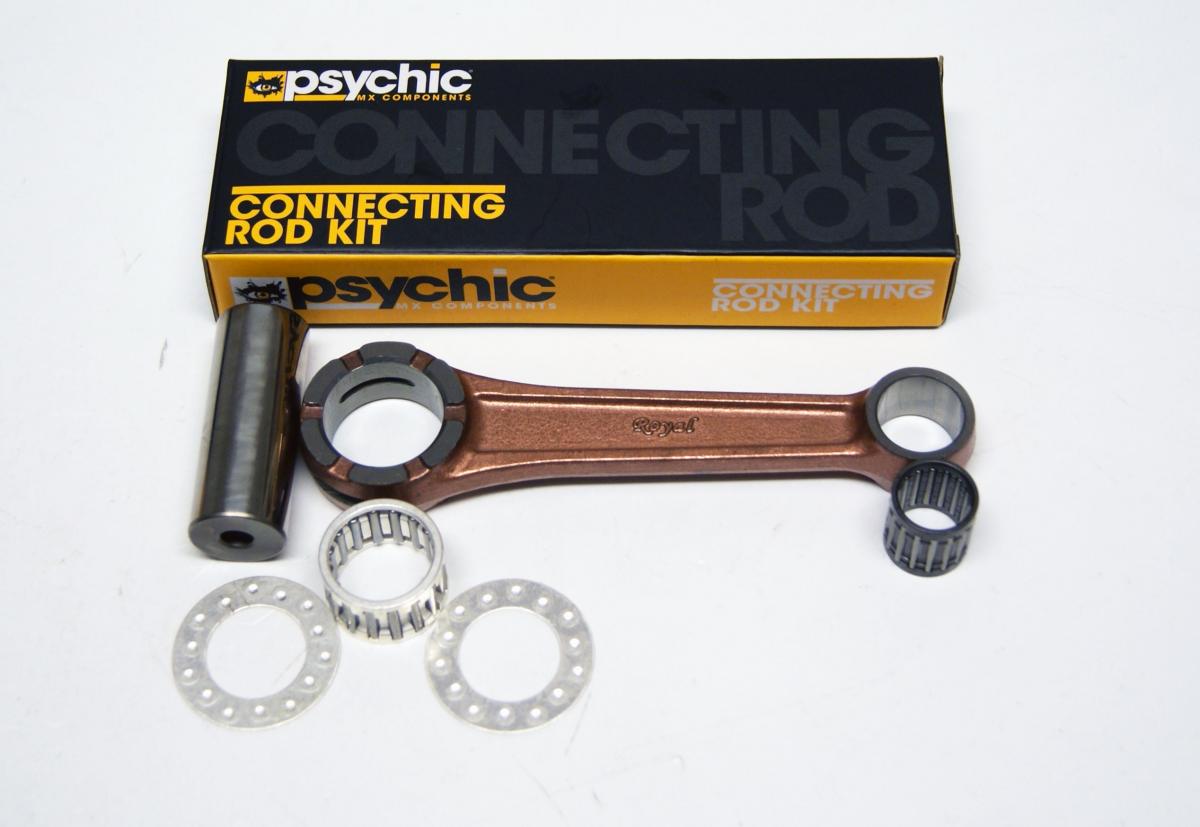

PSYCHIC CON ROD KIT MAICO 490 1981-1982

This connecting rod rebuild kit is designed for the 1981–1982 MAICO 490 models and includes all essential components for a complete rod replacement. Engineered for durability, it features heavy-duty materials and precise manufacturing standards to ensure performance and compatibility with both OEM and aftermarket crankshafts.

Features

• Heavy-duty OE replacement connecting rod

• Manufactured from certified chrome alloy steel (SNCM220) for superior strength

• Crankpins made from hot-rolled ASTM steel and case hardened

• Equipped with caged needle roller bearing design for high RPM longevity

• Bronze phosphor thrust washers with silver coating

• Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)

• Fully compatible with aftermarket and OEM crankshafts

Specifications

• Centre-to-centre length: 137 mm

• Small end bearing: 18x22x23.5 mm

• Small end bore diameter: 22 mm

• Small end width: 20 mm

• Big end bearing: 25x31x19.8 mm

• Big end bore diameter: 31 mm

• Big end width: 20 mm

• Big end pin diameter: 25 mm

• Big end pin length: 64 mm

• Washer dimensions: 25x42x1 mm

Cross-Reference OEM Part Numbers

• 03.1553

Vehicle Fitments

• MAICO 490 (1981–1982)

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
