HOT RODS CON ROD KIT KAWASAKI KX450F 2009-2018

Hot Rods Heavy-Duty Connecting Rod Kit - 8684 is a high-quality replacement designed for Kawasaki KX450F models. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit delivers superior strength and reliability under heavy loads. The advanced design minimizes high-rpm bearing race distortion, and the small end is double-drilled to provide additional lubrication and cooling for the wrist pin bearing.

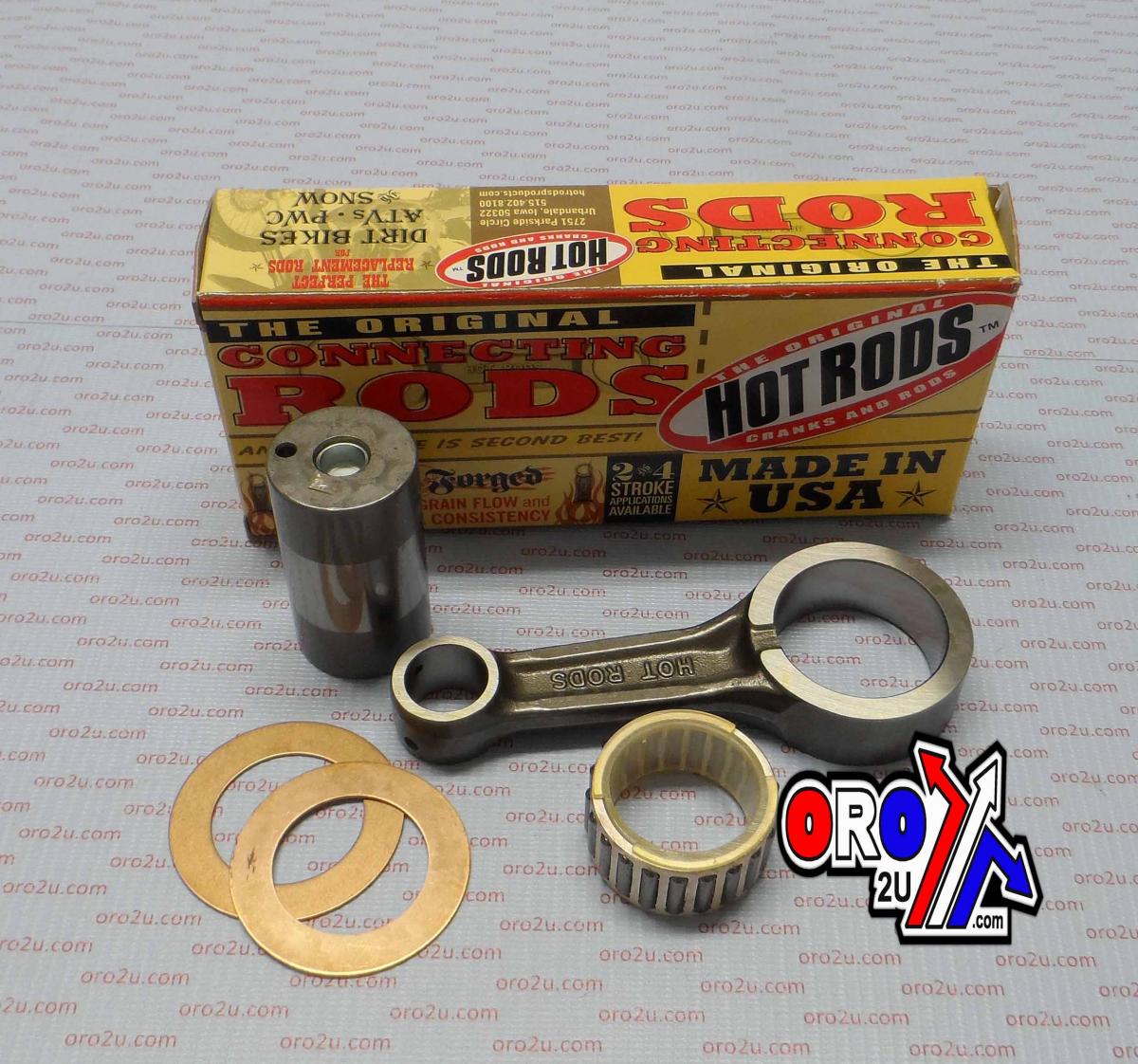

The rods are double-forged for improved grain flow, shot-peened, and double-honed for enhanced durability. Each kit includes a rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Double-forged for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends for extra lubrication and cooling to the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Complete kit with rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing: 34x42x19.7 mm
• Big End Bore: 42.00 mm
• Big End Width: 19.97 mm
• Center to Center: 101.00 mm
• Pin Diameter: 34.00 mm
• Pin Length: 62.00 mm
• Small End Bearing: No Bushing
• Small End Bore: 19.00 mm
• Small End Width: 18.00 mm
• Washer Thickness: 1 mm

Cross-Reference OEM Part Numbers:

• KAWASAKI: 13032-0067

Vehicle Fitment:

• 2009 Kawasaki KX450F
• 2010 Kawasaki KX450F
• 2011 Kawasaki KX450F
• 2012 Kawasaki KX450F
• 2013 Kawasaki KX450F
• 2014 Kawasaki KX450F
• 2015 Kawasaki KX450F

Part Numbers:
56-2919.HR
56-859.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
