CON ROD +5, YAMAHA YFZ350 BANSHEE 1986-2007
CON ROD +5, YAMAHA YFZ350 BANSHEE 1986-2007
Couldn't load pickup availability

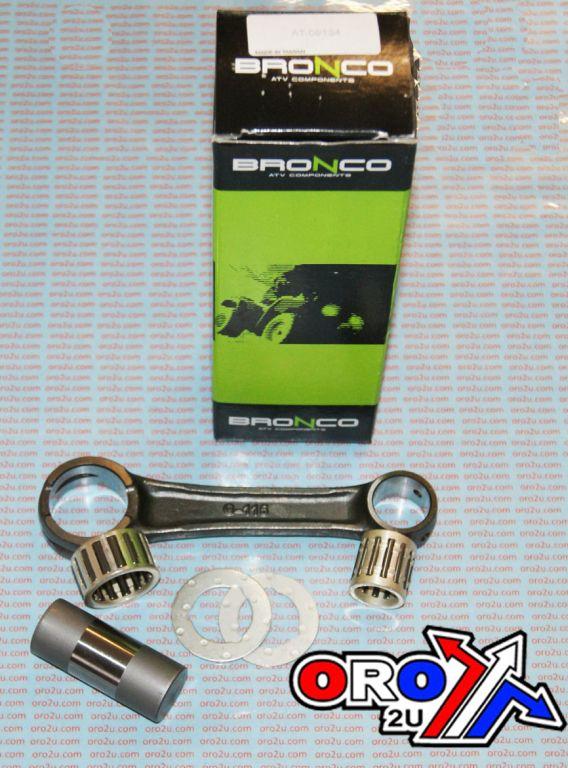

CONNECTING CONROD ROD REBUILD KIT +5mm. BRONCO AT-09134
YAMAMA
YFZ350 Banshee (Long Rod) 1987-2006,,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 115 |
| Small End Bearing | 16x21x22.3 |
| Small End Bore � | 21 |
| Small End Width | 17.90 |
| Big End Bearing | 22x29x17 |
| Big End Bore � | 22 |
| Big End Width | 17 |
| Big End Pin � | 29 |
| Big End Pin Length | 52.70 |
| Washer Thickness | 22.20x36.90x1.00 |
Part No. 56-267.DR (oro2u.com)
Cross reference numbers ONLY.
+5mm long rod for use on 4011 & 4111 crankshafts YAMAHA: 29L-11651-00-00, HOTRODS 8158,
�
�
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
