WISECO CRANKSHAFT BOTTOM END KIT YAMAHA YZ125 2005-2020

YAMAHA
YZ125 2005 - 2020,

Wiseco Crankshaft w/Bearings and Gaskets - WPC163,

��Precision-trued to OEM specifications and factory assembled
��Shot-peening eliminates residual stresses and smoothly blends the rod forging surfaces
��Corrosion-resistant surface treatment
��Crank pin bearing radial running clearance is optimized to ensure maximum performance
��Precision honing ensures ultra-round bearing surface
��Precision-engineered oiling slots maximize rod strength and bearing life
��Double-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston
��Silver-coated bronze phosphor thrust washers with dimpled design increase oil retention and reduce friction between rod and washer interface
��Crank pin bearings are manufactured with the highest-quality hot-rolled steel -- case hardened to 58-62 RC
��Caged needle roller bearings provide the highest possible RPM
��Precision-machined crank webs
��Crankshaft comes with top-end bearing and gasket

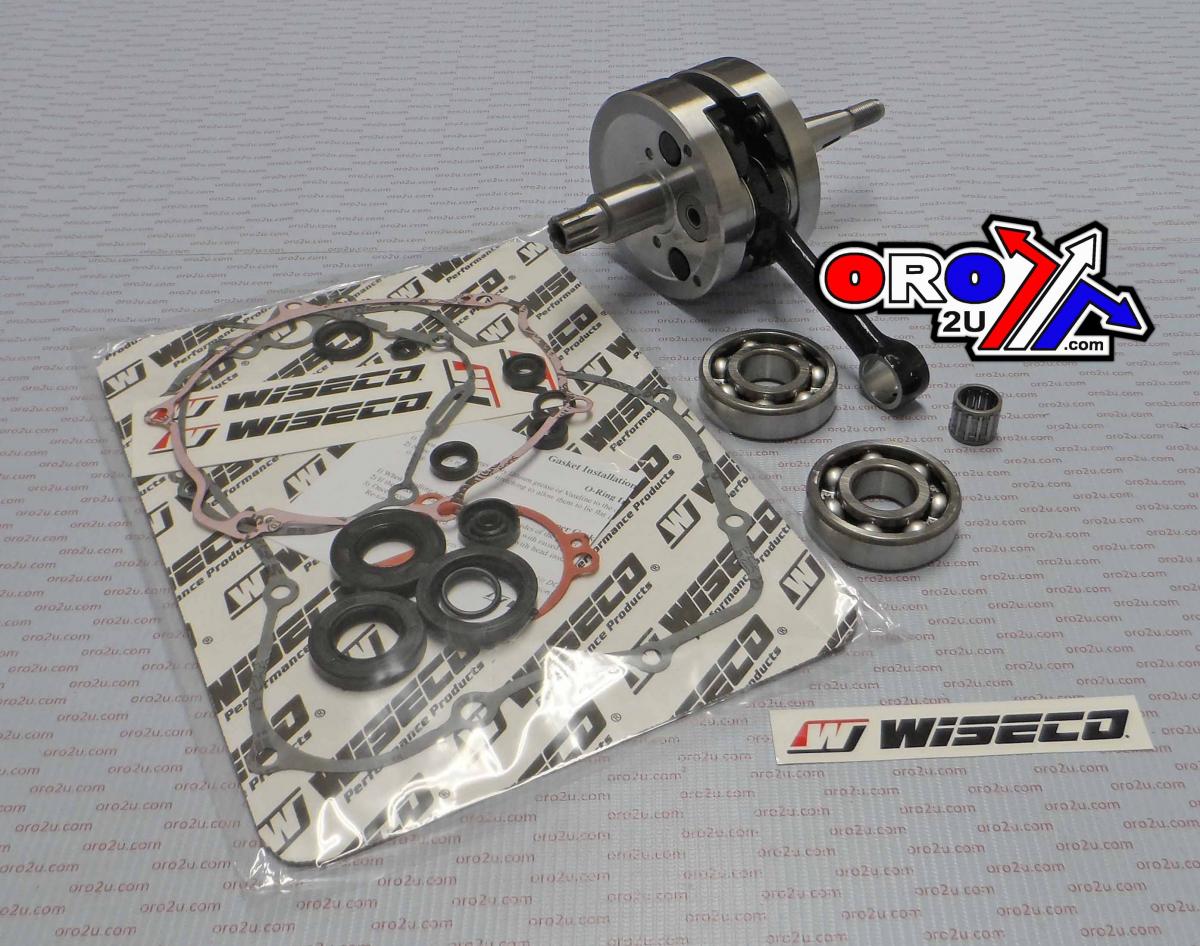

Included Items:

(1) Crankshaft with connecting rod installed

(2) 22 x 56 x 16mm Bearings

(1) Bottom End gasket set with 10 seals

Part No. 56-240.WI

Yamaha

• 2018 Yamaha YZ125
• 2017 Yamaha YZ125
• 2016 Yamaha YZ125
• 2015 Yamaha YZ125
• 2014 Yamaha YZ125
• 2013 Yamaha YZ125
• 2012 Yamaha YZ125
• 2011 Yamaha YZ125
• 2010 Yamaha YZ125
• 2009 Yamaha YZ125
• 2008 Yamaha YZ125
• 2007 Yamaha YZ125
• 2006 Yamaha YZ125
• 2005 Yamaha YZ125

Precision-trued to OEM specifications and factory assembled Connecting rods are double-forged to maintain superior dimensional consistency through improved grain flow Shot-peening eliminates residual stresses and smoothly blends the rod forging surfaces Corrosion-resistant surface treatment Top and bottom end rod bores case hardened to 58-62 RC to optimize bearing running surface Crank pin bearing radial running clearance is optimized to ensure maximum performance Precision honing ensures ultra-round bearing surface Precision-engineered oiling slots maximize rod strength and bearing life Double-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston Silver-coated bronze phosphor thrust washers with dimpled design increase oil retention and reduce friction between rod and washer interface Crank pin bearings are manufactured with the highest-quality hot-rolled steel -- case hardened to 58-62 RC

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
