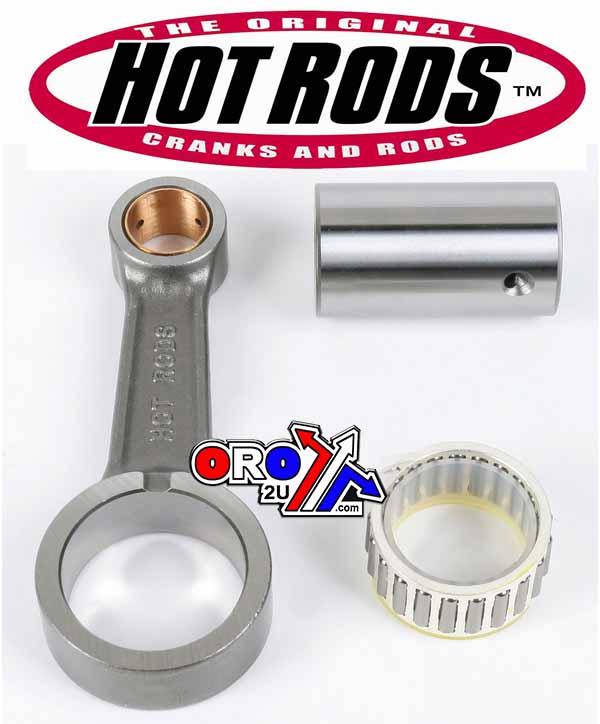

HOTRODS CON ROD YAMAHA YFZ450 2004-2005

Hot Rods Heavy-Duty Connecting Rod Kit for Yamaha YFZ450 models, 2004-2005. This connecting rod kit is engineered for exceptional strength and durability, making it ideal for high-performance applications. Manufactured from hot-rolled ASTM 4115 material, this rod is precision-engineered and features advanced design elements to enhance reliability under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc.
• Side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength and durability.
• Small ends are double drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity.
• Complete kit includes all components for installation.

Included Items:

• Rod
• Crank pin
• Crank pin bearing
• Top-end bearing
• Thrust washers

Technical Specifications:

• Big End Bearing (mm): 34x42x20
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.98
• Center-to-Center Length (mm): 102.50
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 20.00
• Small End Width (mm): 18.00

Cross-Reference OEM Part Numbers:

• Yamaha: 5TG-11651-00-00

Vehicle Compatibility:

• 2005 Yamaha YFZ450
• 2005 Yamaha YFZ450SE Special Edition
• 2004 Yamaha YFZ450
• 2004 Yamaha YFZ450LE Limited Edition

Part Number: 56-232.HR
