CON ROD KIT SUZUKI LT-A500F 2000-2007, LT-F500F 1998-2007

CONNECTING ROD REBUILD KIT BRONCO AT-09248

SUZUKI

• 2000-01 LT-A500F QUADMASTER
• 2002-07 LT-A500F VINSON 4WD
• 1998-02 LT-F500F QUADRUNNER
• 2003-07 LT-F500F VINSON 4WD

ARCTIC CAT

• 400 2X4 2001-2002
• 400 4X4 MANUAL 2001-2002
• 500 4X4/FIS MANUAL 1998-2009
• 500 4X4/FIS/TBX/TRV AUTO 2000-2009

• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods use the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

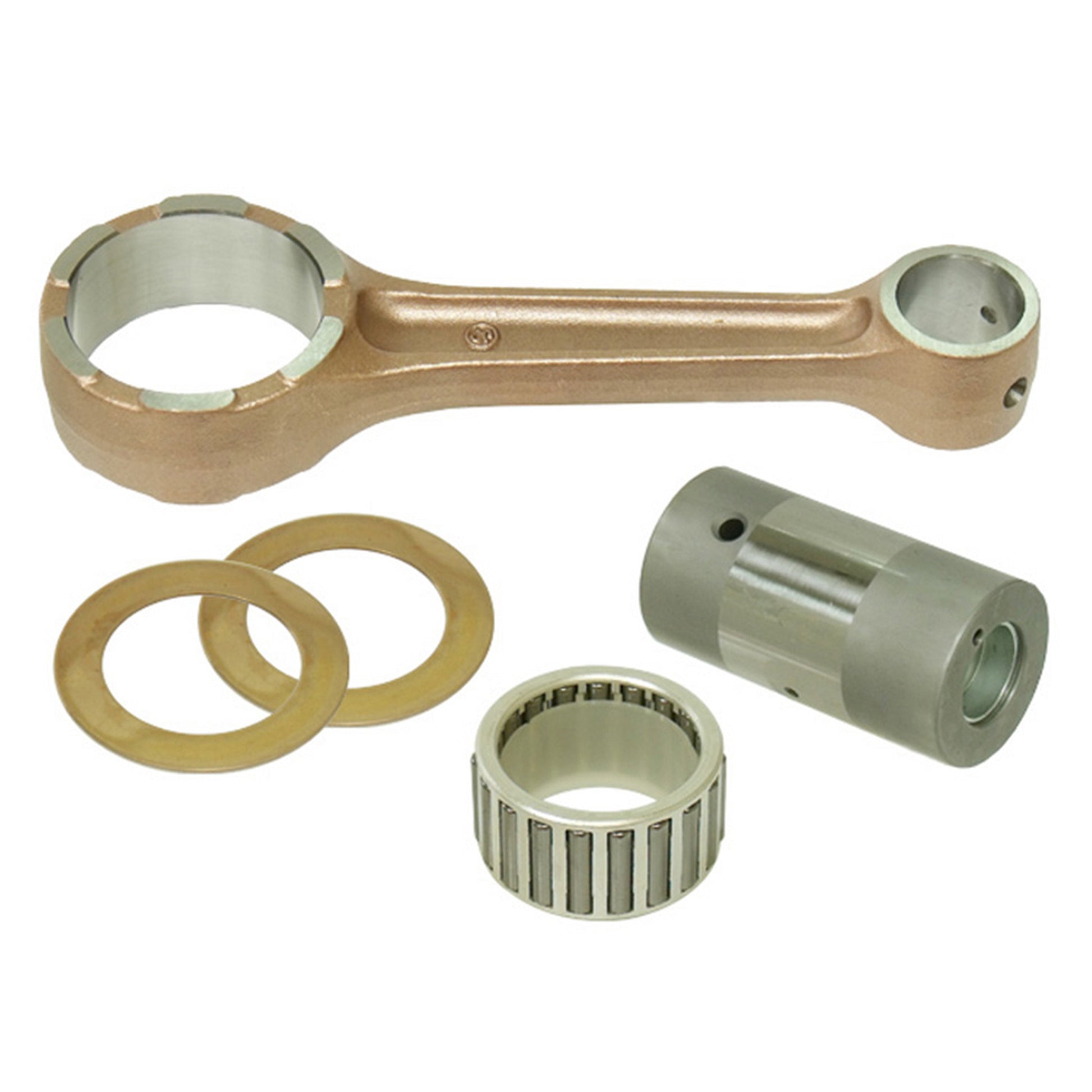

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220

SIZE (MM)

• Centre to Centre: 139.80
• Small End Bearing: None
• Small End Bore Ø: 23
• Small End Width: 25
• Big End Bearing: 37x47x24.8
• Big End Bore Ø: 47
• Big End Width: 25
• Big End Pin Ø: 37
• Big End Pin Length: 70.00
• Washer Thickness: 37.4x55x1.0

Part No. 56-217.BR

Cross reference numbers ONLY:

• Vesrah VA-3009 VA3009
• 09160-37006
• 09263-37007
• 12161-32E00
• 12210-24B01-0A0

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
