HOTRODS CON ROD KIT YAMAHA YFM660R 01, YFM660F GRIZZLY 02-08

The Hot Rods Connecting Rod Kit 8614 is a heavy-duty OE replacement designed for the Yamaha YFM660R Raptor (2001). Constructed from certified 8620 AISI steel, it provides superior strength and reliability for high-performance applications. This kit is fully compatible with both Hot Rods and OE crankshafts and includes all necessary components for installation.

Features:

• Heavy-duty connecting rod made from certified 8620 AISI steel for exceptional strength.
• Big end features side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Crankpins are hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for durability.
• Caged needle roller bearing design ensures longevity at high RPMs.
• Bronze phosphor thrust washers with silver coating for enhanced lubricity.

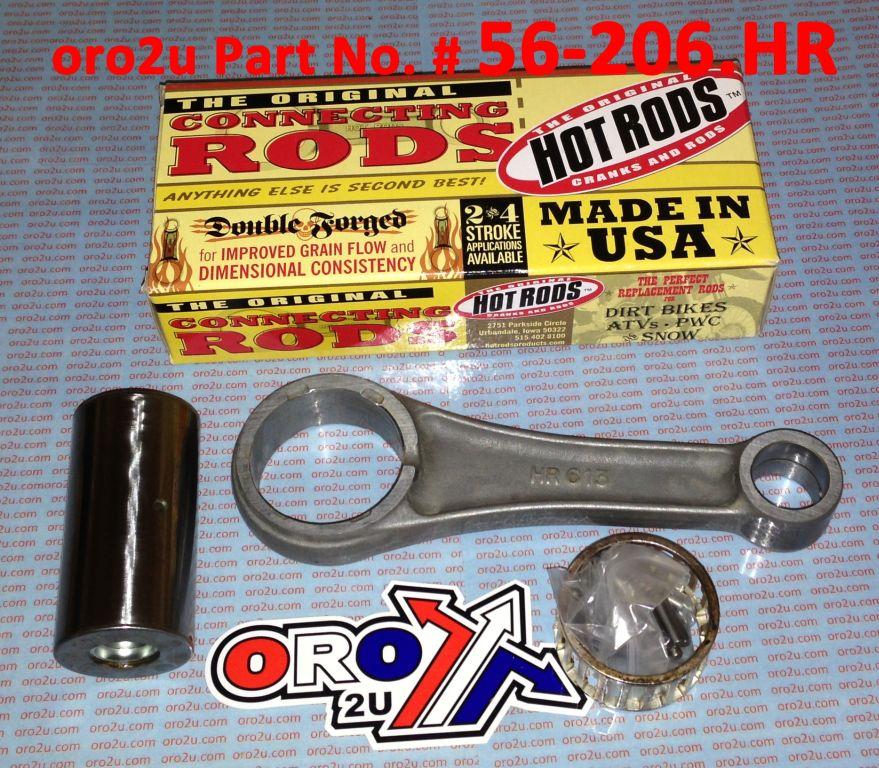

• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the U.S.A.

Technical Specifications:

• Big End Bearing: 37x45x22 mm
• Big End Crank Pin: 37 mm diameter, 73.80 mm length
• Big End Bore: 45.00 mm
• Big End Width: 21.97 mm
• Center to Center: 136.50 mm
• Small End Bore: 22.00 mm
• Small End Width: 21.97 mm
• Washer Thickness: Not Used

Cross-Reference OEM Part Number:

• Yamaha: 5LP-11651-00-00

Compatible Model:

• 2001 Yamaha YFM660R Raptor

Part Number: 56-206.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
