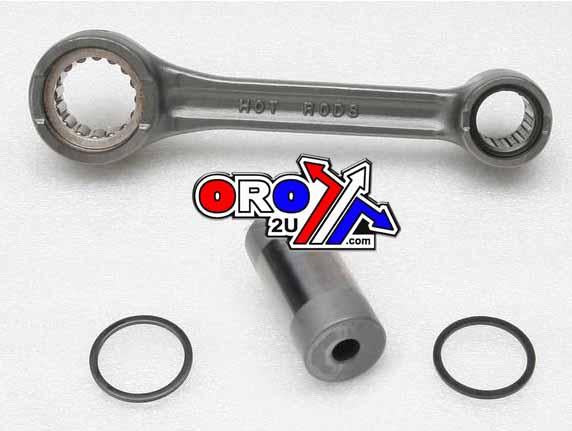

HOTROD CON ROD KIT SUZUKI LT250R 1987-1992

This high-quality connecting rod kit is designed for durability and reliability, making it an excellent replacement for Suzuki LT250R models. Crafted from premium materials and engineered with advanced design features, it ensures optimal performance in demanding applications.

Features:

• Premium Material: Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Advanced Design: Strategically placed side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-Forged Rods: Enhances grain flow and maintains dimensional consistency for improved reliability.
• Shot-Peened and Double-Honed: Provides excellent strength under heavy loads.
• Enhanced Lubrication: Double-drilled small ends increase lubrication and cooling for the wrist pin bearing, crucial for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings are coated for improved lubricity.
• Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

• Big End Bore: 32.00 mm
• Center to Center: 128.00 mm
• Pin Diameter: 24.00 mm
• Pin Length: 54.50 mm

Small End Bearing (mm):

• Small End Bore: 23.00 mm

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-00B00, 12161-05D00
• Hot Rods: 8164

Vehicle Fitments:

Suzuki:

• 1987–1992 LT250R Quad Racer

Part Number: 8164

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
