PSYCHIC CON ROD KIT SUZUKI LT250R 1987-1992

CONNECING CONROD ROD REBUILD KIT
PSYCHIC / 4-PLAY / BRONCO AT-95504

SUZUKI ATV
1987-1992 LT250R Quadracer,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

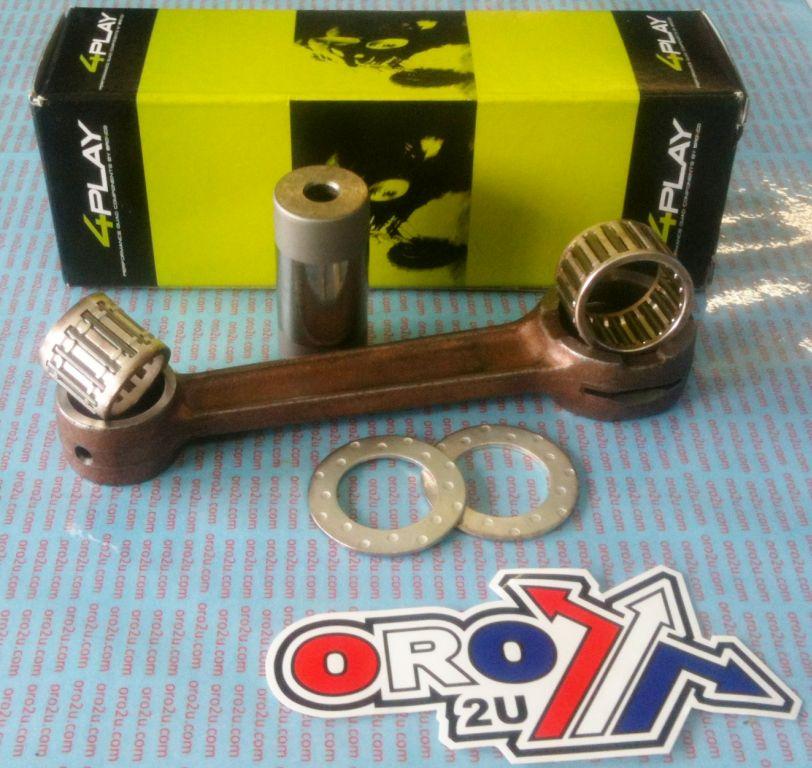

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Center To Center (mm): 128
Big End Bearing (mm): �
Big End Bore (mm): 32
Big End Width (mm):
Big End Pin Diameter (mm): 24
Big End Pin Length (mm): 54.50
Small End Bearing (mm):
Small End Bore (mm): 23
Small End Width (mm):
Washer Thickness (mm):

Part No. 56-192.DR

Cross reference numbers ONLY.
12211-14301-000, 09160-24015, 12161-00B00 12161-05D00, HOTROD 8164

This part fits: SuzukiLT-250R QuadRacer1987 Suzuki LT-250R QuadRacer 1988 Suzuki LT-250R QuadRacer 1989 Suzuki LT-250R QuadRacer 1990 Suzuki LT-250R QuadRacer 1991 Suzuki LT-250R QuadRacer 1992 Suzuki LT-250R QuadRacer

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
