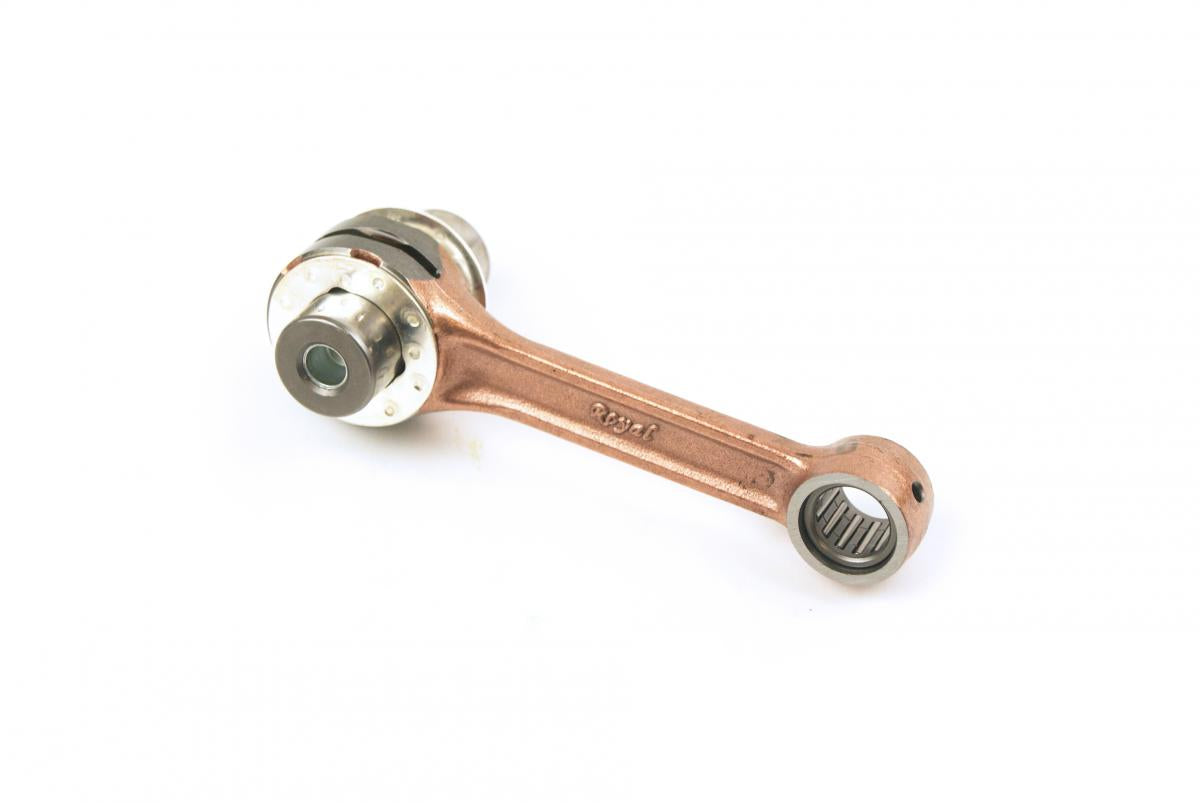

NAMURA CON ROD KIT YAMAHA YZ125 2001-2004

YAMAHA
YZ125 2001-2004,

CONNECTING CONROD ROD REBUILD KIT NAMURA MX-09082

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Big End Bearing (mm): 22x29x16.7
Big End Bore (mm): 29.00
Big End Width (mm): 16.90
Center To Center (mm): 105.00
Pin Diameter (mm): 22.00
Pin Length (mm): 54.30
Small End Bearing (mm): 15x19x17.6
Small End Bore (mm): 19.00
Small End Width (mm): 16.90

Part No. 56-168.DR

Cross reference numbers ONLY.
5MV-11651-00-00, HOT RODS 8604, WISECO WPR183, WOSSNER P2017, PSYCHIC MX-09082,

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
