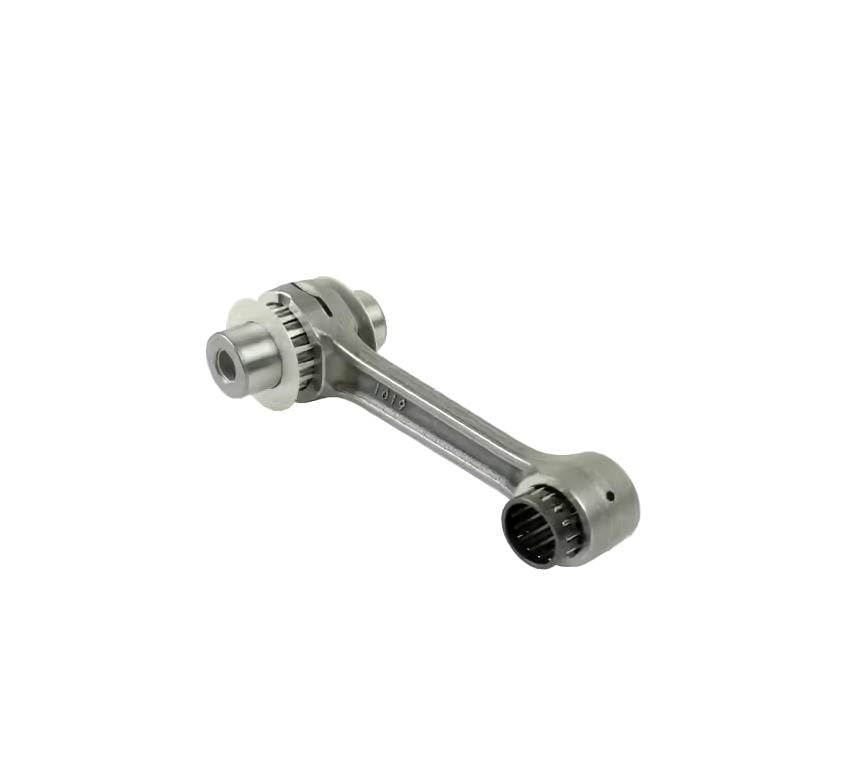

ATHENA CON ROD KIT YAMAHA YZ250 1999-2024, YZ250X 2016-2023

ATHENA Connecting Rod Offroad Kit - P40321019

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 31.00
• Big End Pin Diameter (mm) 24.00
• Big End Width (mm) 17.00
• Center To Center (mm) 125.00
• Net Weight (Kg) 0.45
• Piston Pin Diameter (mm) 22.00
• Small End Width (mm) 20.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 5CU-11651-00-00
• 5MW-11651-00-00
• PSYCHIC MX-09083
• PROX 03.2309
• WOSSNER 2028
• HOTROD 8156

Vehicle compatibility

• YAMAHA YZ 2T 250 cc 1999/2025
• YAMAHA YZ X 250 cc 2016/2025

Part No. 56-981.ATH

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
