HOTRODS CON ROD KIT YAMAHA YZ125 2005-2021, YZ125X 2020-2022

High-quality connecting rod kit designed for Fantic and Yamaha models, engineered to deliver durability and precision. Manufactured to meet or exceed OEM specifications, this kit ensures reliable performance and ease of installation.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
• Advanced design includes strategically placed side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity and reduce wear.

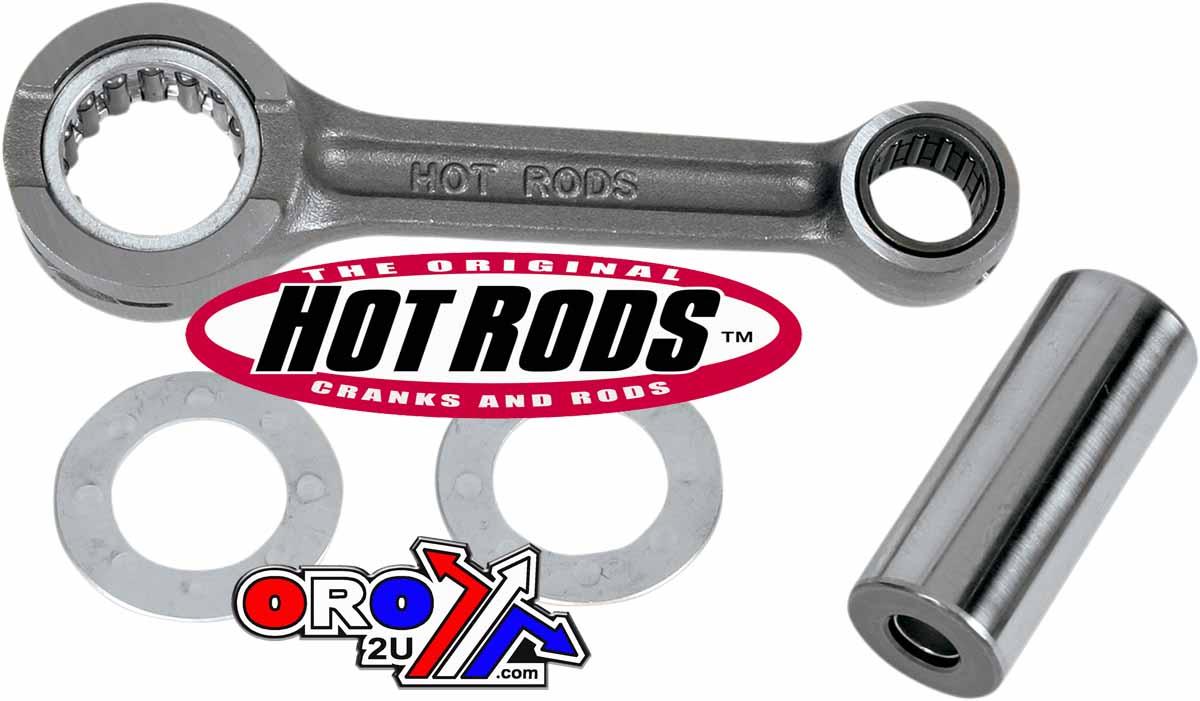

• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a comprehensive rebuild.

Specifications (mm):

• Big End Bearing: 22x29x16.7
• Big End Bore: 29.00
• Big End Width: 16.95
• Center to Center: 102.00
• Pin Diameter: 22.00
• Pin Length: 54.50
• Small End Bearing: 15x19x17.2
• Small End Bore: 19.00
• Small End Width: 16.00

Cross-Reference OEM Part Numbers:

• Hot Rods: 8718 / 8629
• Yamaha: 1C3-11651-00-00M
• Wossner: P2018
• Psychic: MX-09084

Vehicle Fitment:

Fantic:

• XE 125 (2021–2022)
• XX 125 (2021)

Yamaha:

• YZ125 (2005–2020)
• YZ125X (2020)

Part Number: 56-159.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
