MAZZUCCHELLI CON ROD KIT YAMAHA DT250 1972-1974, TY250 1974
MAZZUCCHELLI CON ROD KIT YAMAHA DT250 1972-1974, TY250 1974
Couldn't load pickup availability
YAMAHA DT2, RT2 DT250A 1974 / DT360 ,

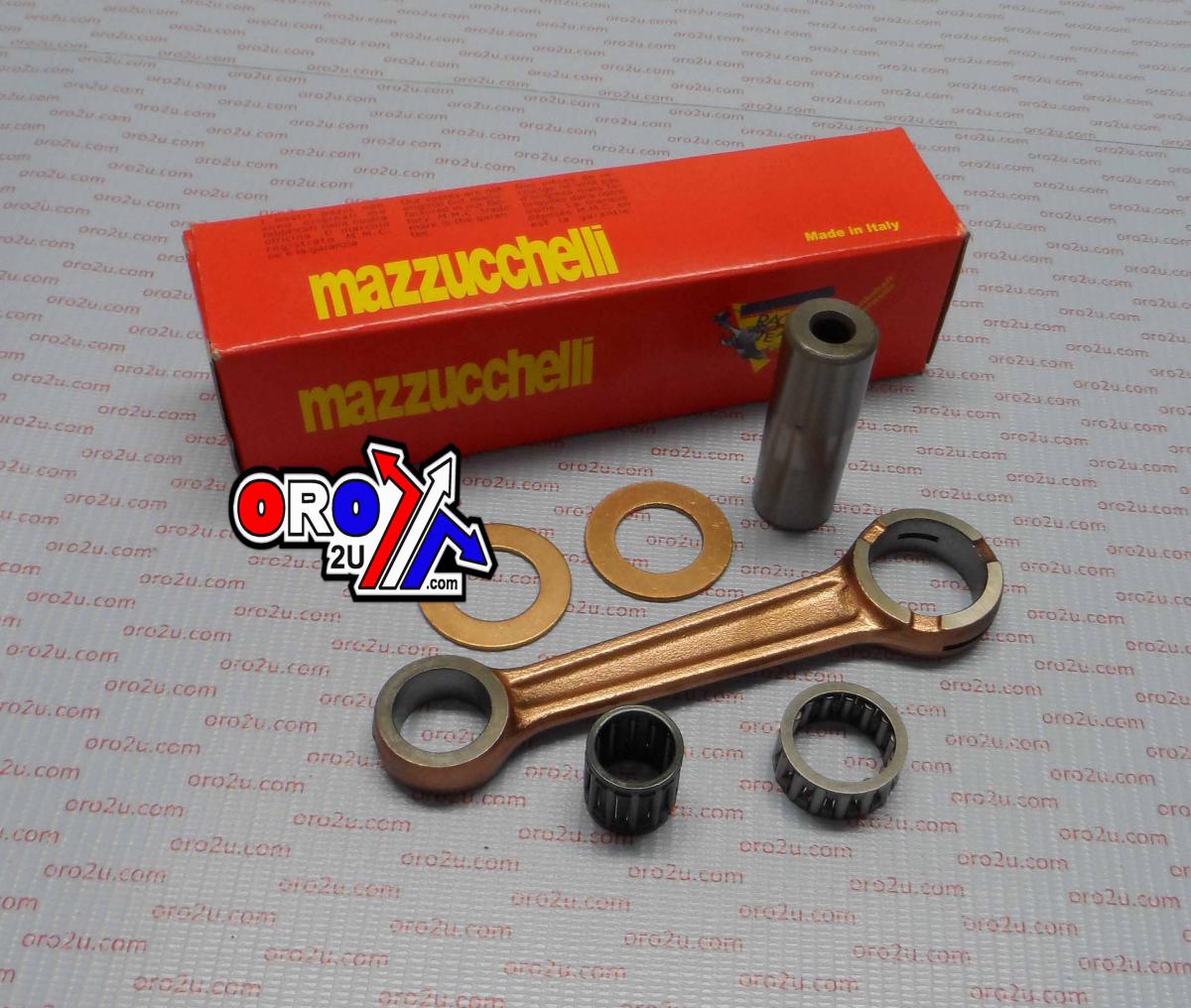

CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A
SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm
| SIZE | MM |
| Centre 2 Centre | 125 |
| Small End Bearing | 18x22x22 |
| Small End Bore Ø | 22 |
| Small End Width | 20 |
| Big End Bearing | 25x31x20 |
| Big End Bore Ø | 31 |
| Big End Width | 20 |
| Big End Pin Ø | 25 |
| Big End Pin Length | 60 |
| Washer Thickness | 25x41x1 |
Cross reference numbers ONLY.
311-11651-01
DT250A 1974 250 DT250 Dual Purpose
DT2MX 1972 250 DT2MX Dual Purpose
RT2MX 1972 360 RT2MX Off-Road
TY250A 1974 250 TY250 Trials
Cross reference numbers ONLY.
YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20
S/SEED FROM 56-931 TO 56-154.MA
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
