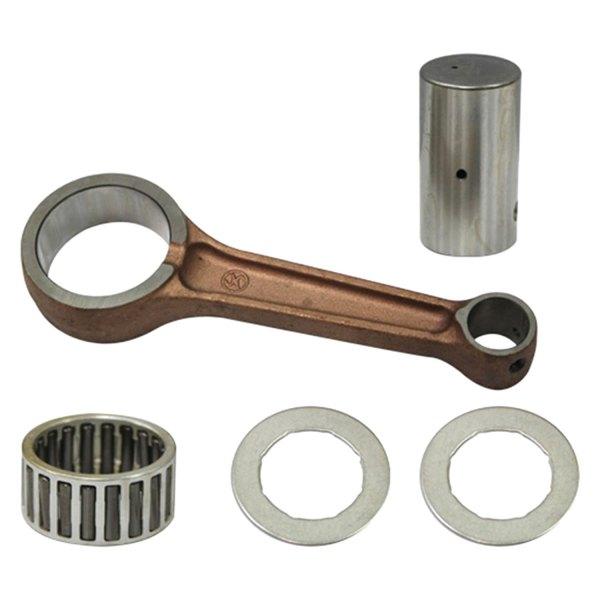

CON ROD HONDA TRX300EX 1993-2008, TRX300FW 1988-2000

HONDA
TRX300EX Fourtrax 93-00,
TRX300EX Sportrax 01-08,
TRX300 4WD Fourtrax 88-00,
TRX300FW 4WD Fourtrax 88-95,
HONDA Dirt XR300R 2010,,

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09453

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Big End Bearing (mm): 33x41x20
Big End Bore (mm): 41
Big End Width (mm): 20
Center To Center (mm): 123
Pin Diameter (mm): 33.00
Pin Length (mm): 60.00
Small End Bearing (mm): NONE
Small End Bore (mm): 17.00
Small End Width (mm): 20.00

Part No. 56-145.DR

Cross reference numbers ONLY.
VESRAH VA-1010,

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
