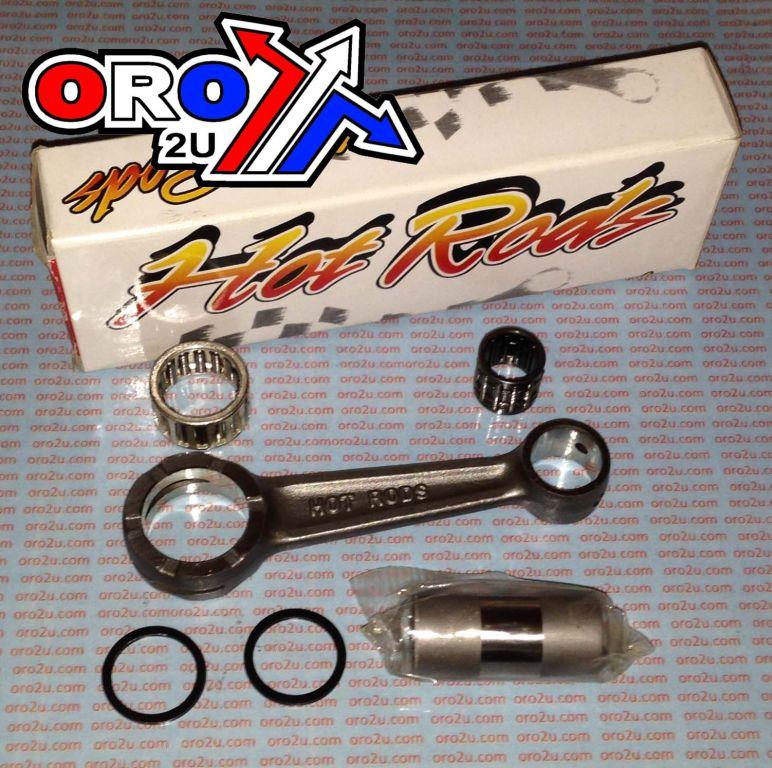

HOTRODS CON ROD KIT SUZUKI RM80 1991-2001

High-quality connecting rod kit designed for Suzuki RM80 models, manufactured to deliver reliability and durability. Built to exacting specifications, this kit ensures optimal performance and confidence in engine rebuilds.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength.
• Advanced design with strategically located side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.
• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild solution.

Specifications (mm):

• Big End Bearing: 20x26x14
• Big End Bore: 26.00
• Big End Width: 14
• Center to Center: 93.50
• Pin Diameter: 20.00
• Pin Length: 44.70
• Small End Bore: 18.00
• Small End Width: [Data missing]
• Washer Thickness: [Data missing]

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-02B00, 12161-02B10, 12161-02B41-0D0, 12161-02B51, 12161-02B52

Vehicle Fitment:

Suzuki:

• RM80 (1991–2001)

Part Number: 56-141.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
