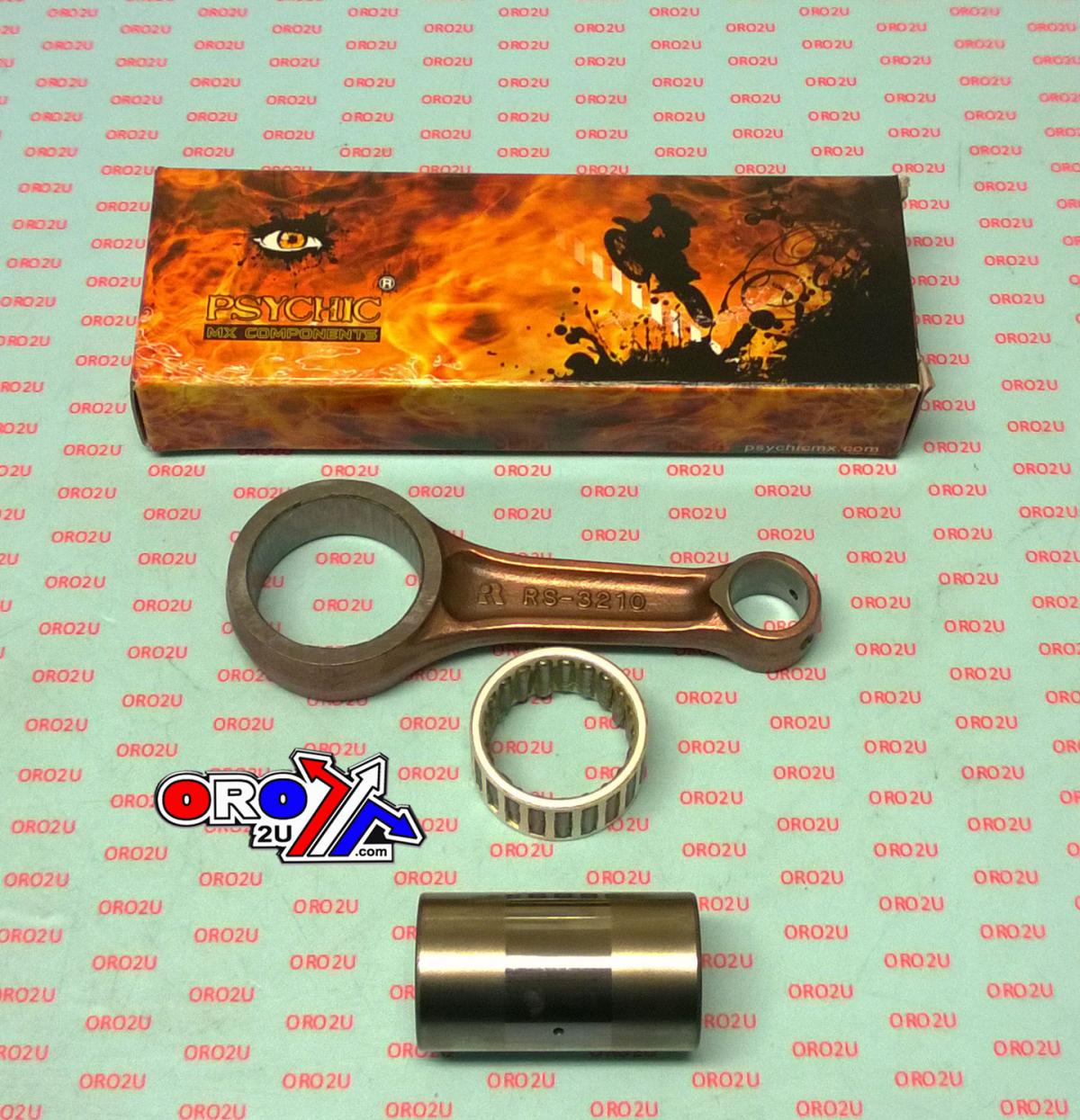

PSYCHIC CON ROD KIT SUZUKI RM-Z 450 2005-2007 / 2013-2024

CONNECTING ROD REBUILD CONROD KIT PSYCHIC MX-09016 �

SUZUKI
RM-Z450 RMZ450 2005-2007,
RM-Z450 RMZ450 2013-2020,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Technical Specifications:
Big End Bearing (mm): 34x42x19.7
Big End Bore (mm): 42.00
Big End Width (mm): 19.75
Center To Center (mm): 106.10mm
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): No Bushing
Small End Bore (mm): 19.00
Small End Width (mm): 16.50

Part No. 56-136.PS

Cross reference numbers ONLY.
ATHENA P40321030, 12210-10H10 / 12210-10H11, 09263-30060- 0B0, 12161-49H00-0B0, HR008661, HOTRODS 8661, PROX 03.3405, PSYCHIC MX-09016, ATHENA P40321030, 12161-35G00-0B0, 12161-35G01-0B0, WOSSNER P4012, WISECO, HOTRODS 8647,

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
