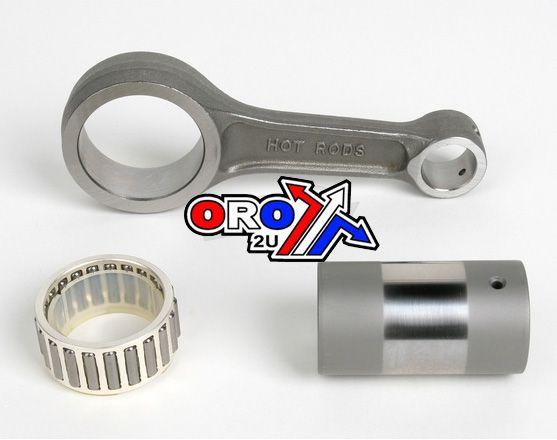

HOTRODS CON ROD KIT SUZUKI RM-Z 450 2005-2007 / 2013-2024

High-quality heavy-duty connecting rod kit, designed for the Suzuki RM-Z450. Manufactured to withstand demanding conditions, this kit ensures durability, optimal performance, and superior strength.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum reliability.
• Advanced design with side scalloping and vent slots to minimize high RPM bearing race distortion.
• Double-forged rods for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Double-drilled small ends for superior lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for reduced friction and increased lubricity.
• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild.

Technical Specifications:

• Big End Bearing (mm): [Data missing]
• Big End Bore (mm): 42.00
• Big End Width (mm): [Data missing]
• Center to Center (mm): 106.10
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): [Data missing]
• Small End Bore (mm): 19.00
• Small End Width (mm): [Data missing]
• Washer Thickness (mm): [Data missing]

Cross-Reference OEM Part Numbers:

• ATHENA P40321030
• 12210-10H10 / 12210-10H11
• 09263-30060-0B0
• 12161-49H00-0B0
• HR008661
• HOTRODS 8661
• PROX 03.3405
• PSYCHIC MX-09016
• 12161-35G00-0B0 / 12161-35G01-0B0
• WOSSNER P4012
• WISECO
• HOTRODS 8647

Vehicle Fitment:

Suzuki:

• RM-Z450 (2005–2016)

Part Number: 56-136.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
