HOTROD CON ROD KIT KAWASAKI KX80 82-97, KX100 95-97

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX80, KX100, and KDX80 models. Built to withstand demanding riding conditions, this kit offers superior durability, strength, and precision for optimal engine performance.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum durability.
• Advanced design includes side scalloping and vent slots to minimize bearing race distortion at high RPMs.
• Double-forged rods improve grain flow and dimensional accuracy.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Small ends are double-drilled for superior lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

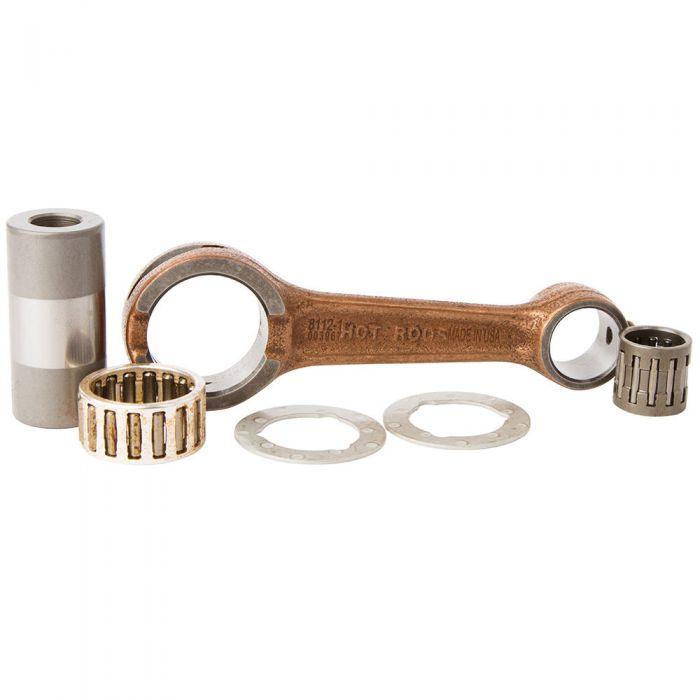

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Center to Center Length: 92.00 mm
• Small End Bearing Dimensions: 14 x 18 x 17.20 mm
• Small End Bore Diameter: 18.00 mm
• Small End Width: 16.00 mm
• Big End Bearing Dimensions: 22 x 28 x 15.8 mm
• Big End Bore Diameter: 28.00 mm
• Big End Width: 16.00 mm
• Big End Pin Diameter: 22.00 mm
• Big End Pin Length: 46.40 mm
• Washer Dimensions: 22 x 37 x 1 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1039, 13044-5015, 13044-5031, 13044-5034, 13044-5053
• Hot Rods: 8112

Compatibility:
Fits the following models:

Kawasaki:

• KX80 (1982-1997)
• KX100 (1995-1997)
• KDX80 (1982-1988)

Part Number: 56-118.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
