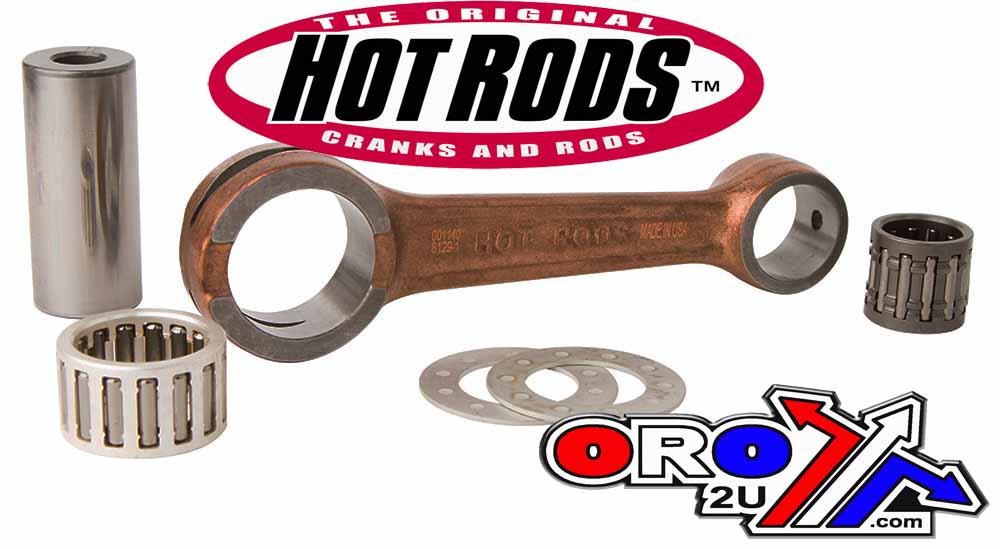

HOTRODS CON ROD KIT KAWASAKI KDX200 89-06, KDX220 97-05, KX125 88-91

A premium Hot Rods connecting rod kit designed for Kawasaki KDX200, KDX220R, and KX125 models. Engineered for high-performance and durability, this kit is perfect for heavy-duty riding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum strength and durability.
• Advanced design includes side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior resilience under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide enhanced lubricity.
• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bearing Dimensions: 22 x 29 x 16.7 mm
• Big End Bore: 29.00 mm
• Big End Width: 16.90 mm
• Center to Center Length: 109.00 mm
• Pin Diameter: 22.00 mm

Cross-Reference OEM Part Numbers:

• Hot Rods: 8129
• Wossner: P2033
• Wiseco: WPR131
• Psychic: MX-09031
• Kawasaki: 13032-1146, 13032-1210, 13044-5071

Compatibility:
Fits the following models:

Kawasaki:

• KDX200 (1989-2006)
• KDX220R (1997-2005)
• KX125 (1988-1991)

Part Number: 56-116.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
