HOTRODS CON ROD KIT KAWASAKI KX60/65 1985-2022, SUZUKI RM65 03-05

A high-performance Hot Rods connecting rod kit designed for Kawasaki KX60/KX65 and Suzuki RM60/RM65 models. This kit offers exceptional strength, durability, and precision engineering for optimal performance under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior durability under extreme loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide added lubricity.

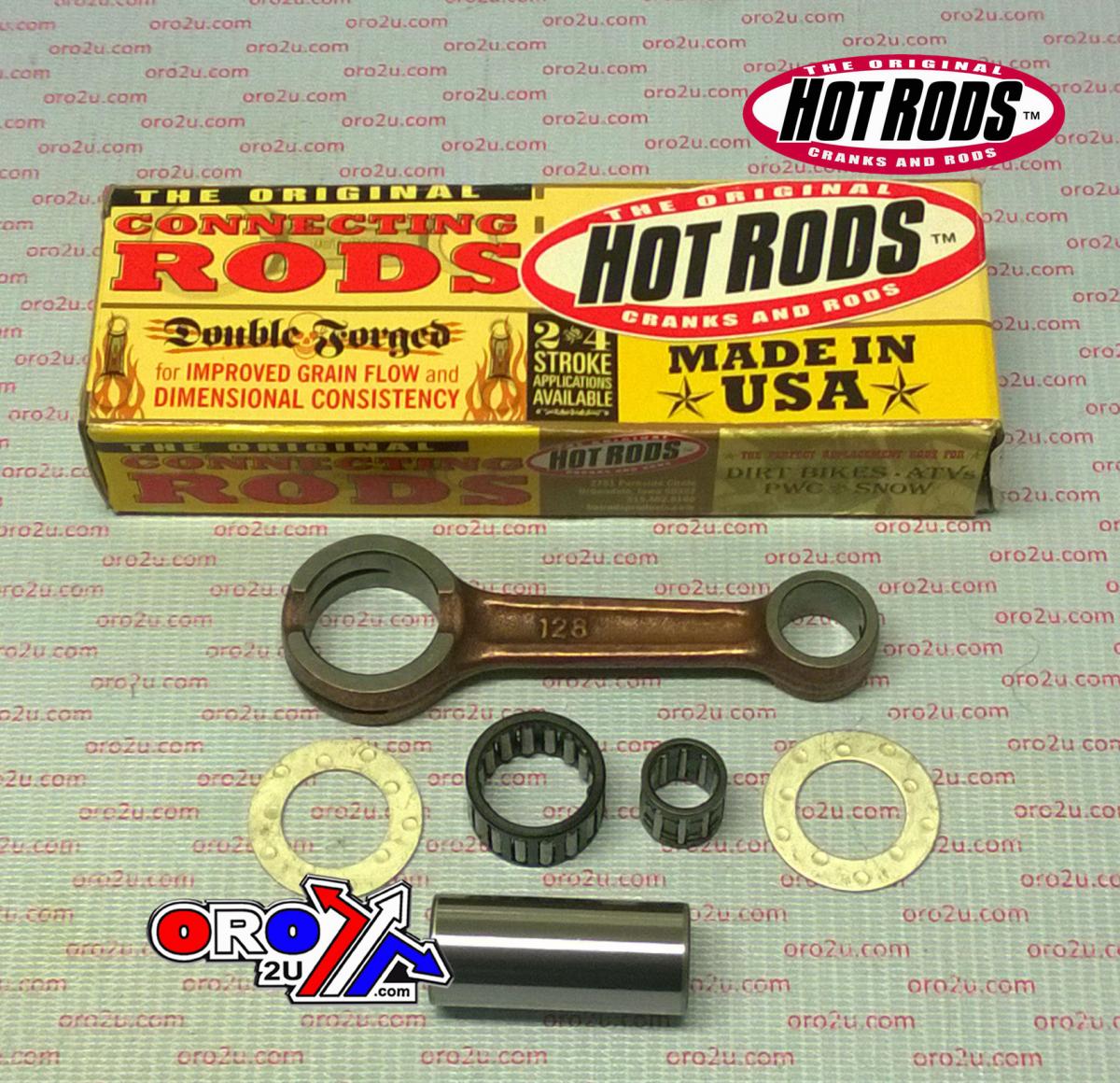

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bore: 26.00 mm
• Center to Center: 85.00 mm
• Pin Diameter: 20.00 mm
• Pin Length: 45.80 mm
• Small End Bore: 16.00 mm
• Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:

• Kawasaki: 13032-1246, 13044-5024
• Suzuki: K1303-21246

Compatibility:
Fits the following models:

Kawasaki:

• 1985-2003 KX60
• 2000-2018 KX65 (including Monster Energy editions)

Suzuki:

• RM60
• RM65

Part Number: 56-114.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
