CONNECTING ROD 98-06 KTM125 HOTROD 8627 KTM125 SX/EXC

The Hot Rods connecting rod kit (Part No. 8627) is a high-quality replacement for KTM 125 SX and 125 EXC models. Designed for durability and performance, this kit meets the demands of high-RPM applications, providing reliability under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum strength and durability.
• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength and reliability.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

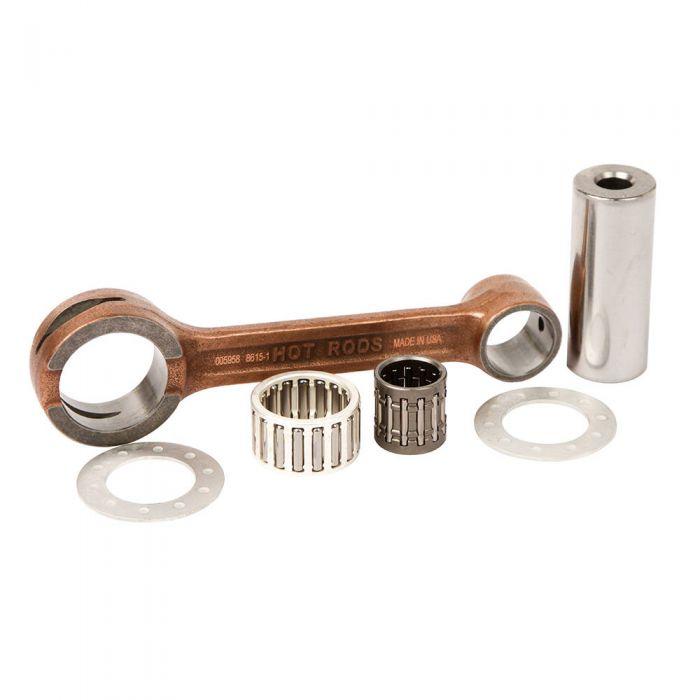

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 110.00
• B (Big End Bore Diameter): 28.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 19.00
• E (Small End Width): N/A
• F (Pin Length): 54.80
• Washer Thickness: 1.00

Vehicle Compatibility:

KTM 125 SX:

• 1998–2006

KTM 125 EXC:

• 1998–2006

Cross-reference OEM Part Numbers:

• Hot Rods: 8627
• KTM: 50330015000, 50330015100
• Wossner: P2011

Part Number:
56-112.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
