CONNECTING ROD 03-08 RM250 HOTROD 8611 SUZUKI

The Hot Rods connecting rod kit (Part No. 8611) is a high-performance replacement for Suzuki RM250 models, engineered for superior strength, reliability, and performance under demanding conditions. Designed with advanced materials and features, this kit is ideal for high-RPM applications.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum durability.
• Advanced design incorporates side scalloping and vent slots to minimize high-RPM bearing race distortion.
• Double-forged rods enhance grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for added strength and reliability under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling to the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for improved lubricity.

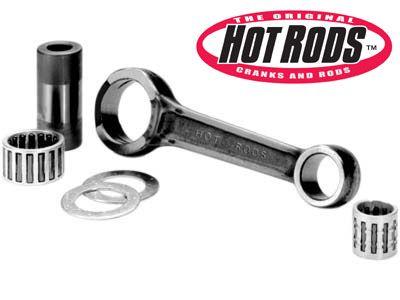

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• Center-to-Center Length: 125.00
• Big End Bore Diameter: 32.00
• Big End Width: N/A
• Pin Diameter: 24.00
• Pin Length: 58.90
• Small End Bore Diameter: 23.00
• Small End Width: N/A
• Washer Thickness: 1.00

Vehicle Compatibility:

• Suzuki RM250: 2003–2012

Cross-reference OEM Part Numbers:

• Suzuki: 12161-37F20

Part Number:
56-109.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
