HOT RODS CON ROD KIT SUZUKI RM85 2002-2023

The Hot Rods connecting rod kit (Part No. 8610) is a premium replacement designed for Suzuki RM85 models. Engineered with precision and durability, it provides exceptional performance in high-RPM applications, ensuring reliability under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength and durability.
• Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for superior strength and reliability.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.

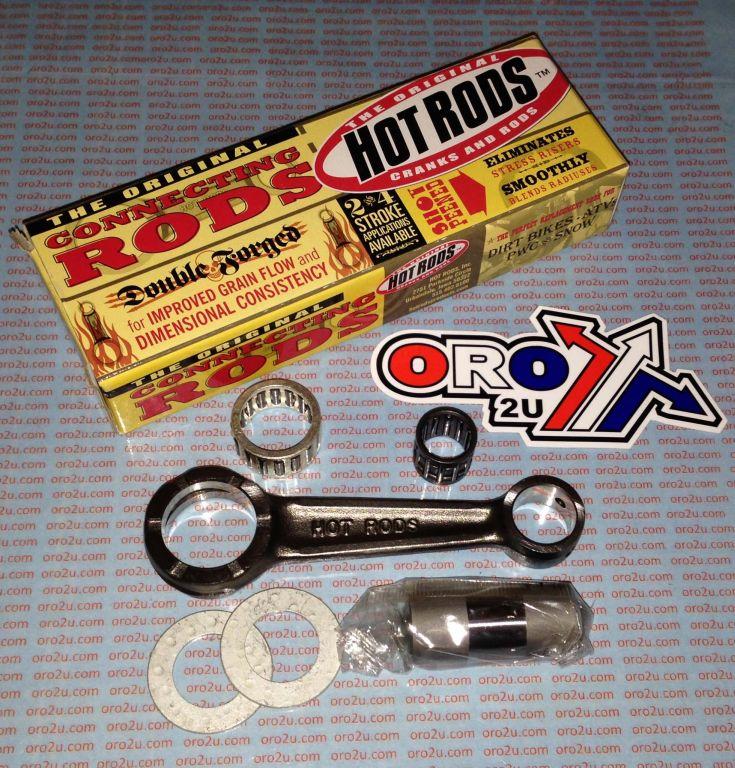

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 93.50
• B (Big End Bore Diameter): 26.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 14.00
• E (Small End Width): N/A
• F (Pin Length): 44.60
• Washer Thickness: 1.50
• Big End Bearing: 20 x 26 x 13.7 mm

Vehicle Compatibility:

• Suzuki RM85: 2002–2018
• Suzuki RM85L: 2003–2012

Cross-reference OEM Part Numbers:

• Suzuki: 12161-03B00
• Suzuki: 12161-03B01
• Suzuki: 12161-03B02

Part Number:
56-108.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
