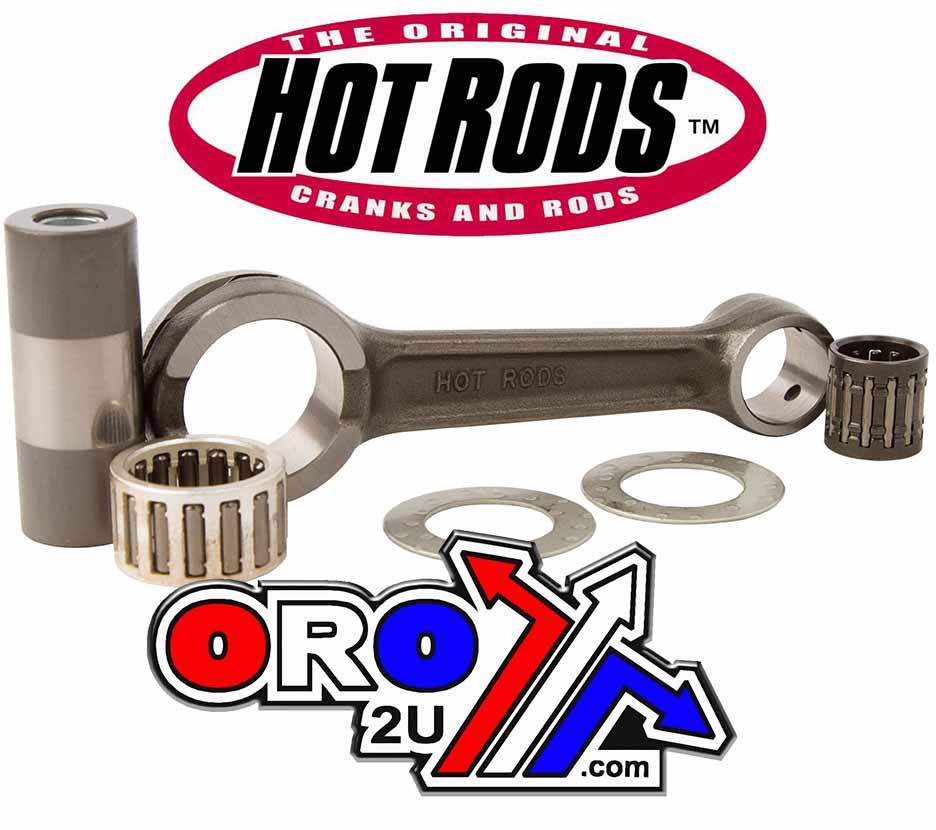

HOT RODS CON ROD KIT KAWASAKI KX125 2003-2008

The Hot Rods connecting rod kit (Part No. 8612) is a high-performance replacement component designed for Kawasaki KX125 models. Engineered with advanced materials and manufacturing processes, this kit ensures reliability and durability under demanding conditions. Ideal for high-RPM applications, it includes all necessary components for efficient installation.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior durability.
• Advanced design with side scalloping and vent slots to minimize high-RPM bearing race distortion.
• Double-forged rods enhance grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for added strength and reliability under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for increased lubricity.
• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 104
• B (Big End Bore Diameter): 41
• C (Big End Width): 17
• D (Small End Bore Diameter): 15
• E (Small End Width): 17

Vehicle Compatibility:

• 2003 Kawasaki KX125
• 2004 Kawasaki KX125
• 2005 Kawasaki KX125

Cross-reference OEM Part Numbers:

• Kawasaki: 13032-0010
• Kawasaki: 13032-1253
• Psychic: MX-09035
• ProX: 03.4223
• Wossner: P2010
• Hot Rods: 8612
• Athena: P40321033

Part Number:
56-106.HR

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
