BRONCO CON ROD ARCTIC CAT 650 06-09, 700 08-17, 550 09-15

ATV (ARCTIC CAT)
2009-17 550 H1/TRV/GT/LTD/ALTERRA/XR/XT,
2005-12 650 H1/TBX/TRV/4X4,
2008-18 700 H1/TBX/HDX/XR/ALTERRA/VLX,
UTV (ARCTIC CAT)
2009-15 550 PROWLER/XT,
2006-09 650 PROWLER,
2008-17 700 PROWLER,

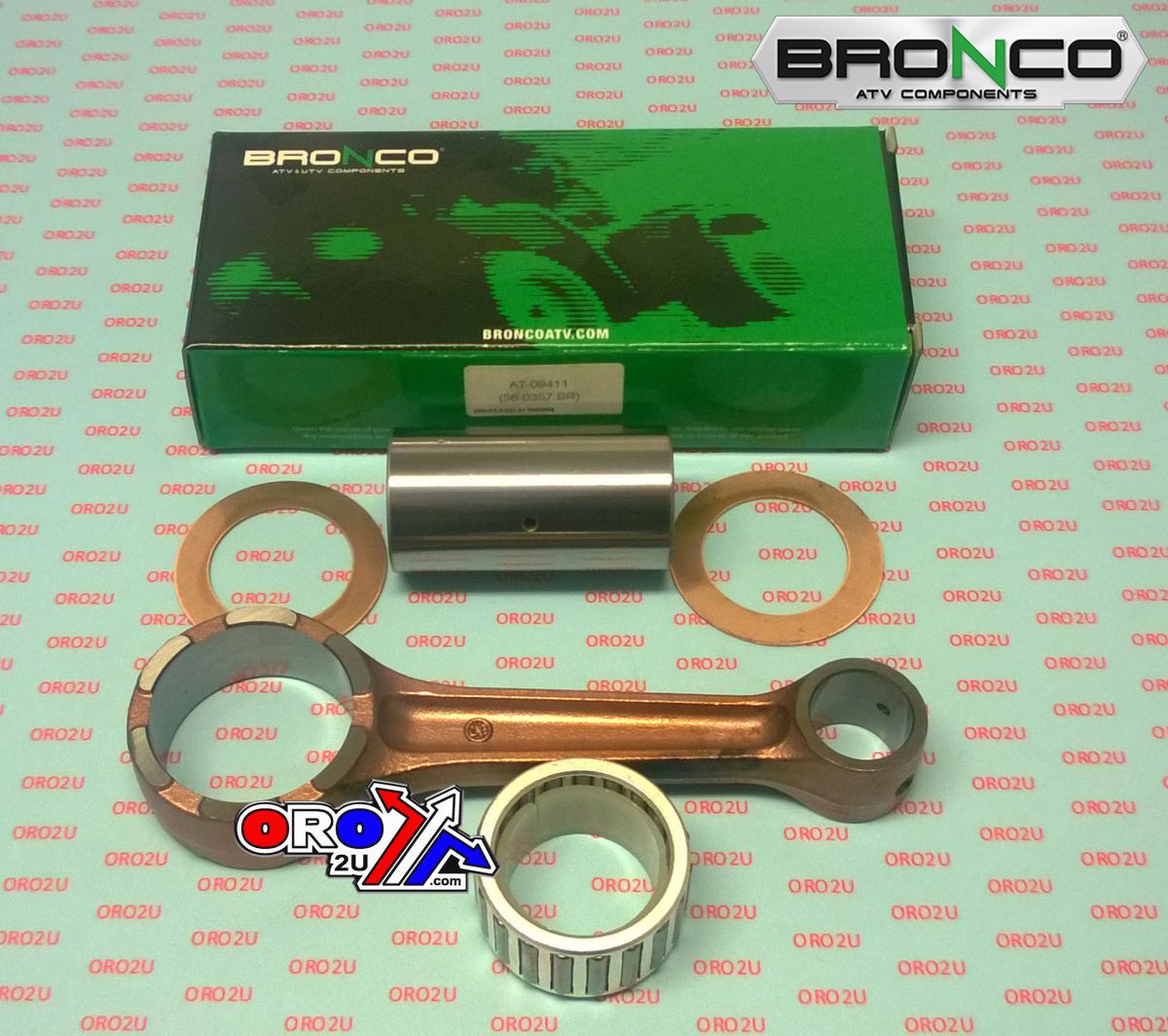

CONNECTING ROD REBUILD KIT BRONCO AT-09411

CENTER-TO-CENTER 139.8mm,
Big Bore 47x25mm,
Small Bore 23x25mm,
Brottom Bearing 37x47x24.80mm,
Washers 37.44x55x1.0mm,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Part No. 56-0357.BR

Cross reference numbers ONLY.
0805-032, 0805-073, 0805-278, 0805-286, 0805-325, 0805-3

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
