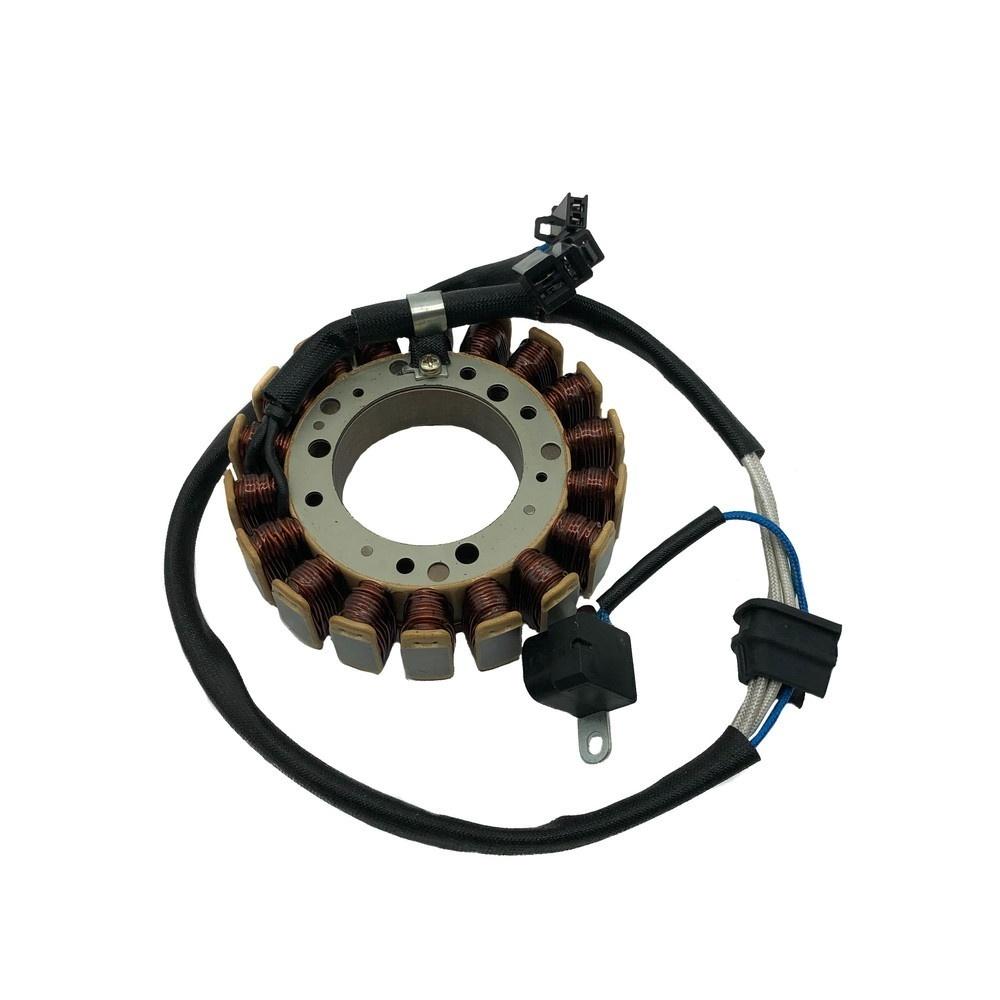

STATOR COIL SUZUKI VL1500 2005-2009

SUZUKI
2005-09 Suzuki VL1500 C90 Boulevard Cruiser w/1462cc
2005-09 Suzuki VL1500T C90T Boulevard Touring w/1462cc

STATOR COIL ARROWHEAD ASU4026

ID 53.5mm OD 115.6mm
Width (OD) 29.3mm, (ID) 20.2mm
# Posts 18 Mtg. Holes 3 - 6.4, 4 - 4.81
w/Pickup Coil
Cord Length 24 inches (1 Main Plug and 1 Pickup Plug)
Cord Length 5 inches (Clamp on Stator To Grommet)
Cord Length Pickup Coil 1.75 inches

Cross reference numbers ONLY. �
32101-10F10, 32101-10F11

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
