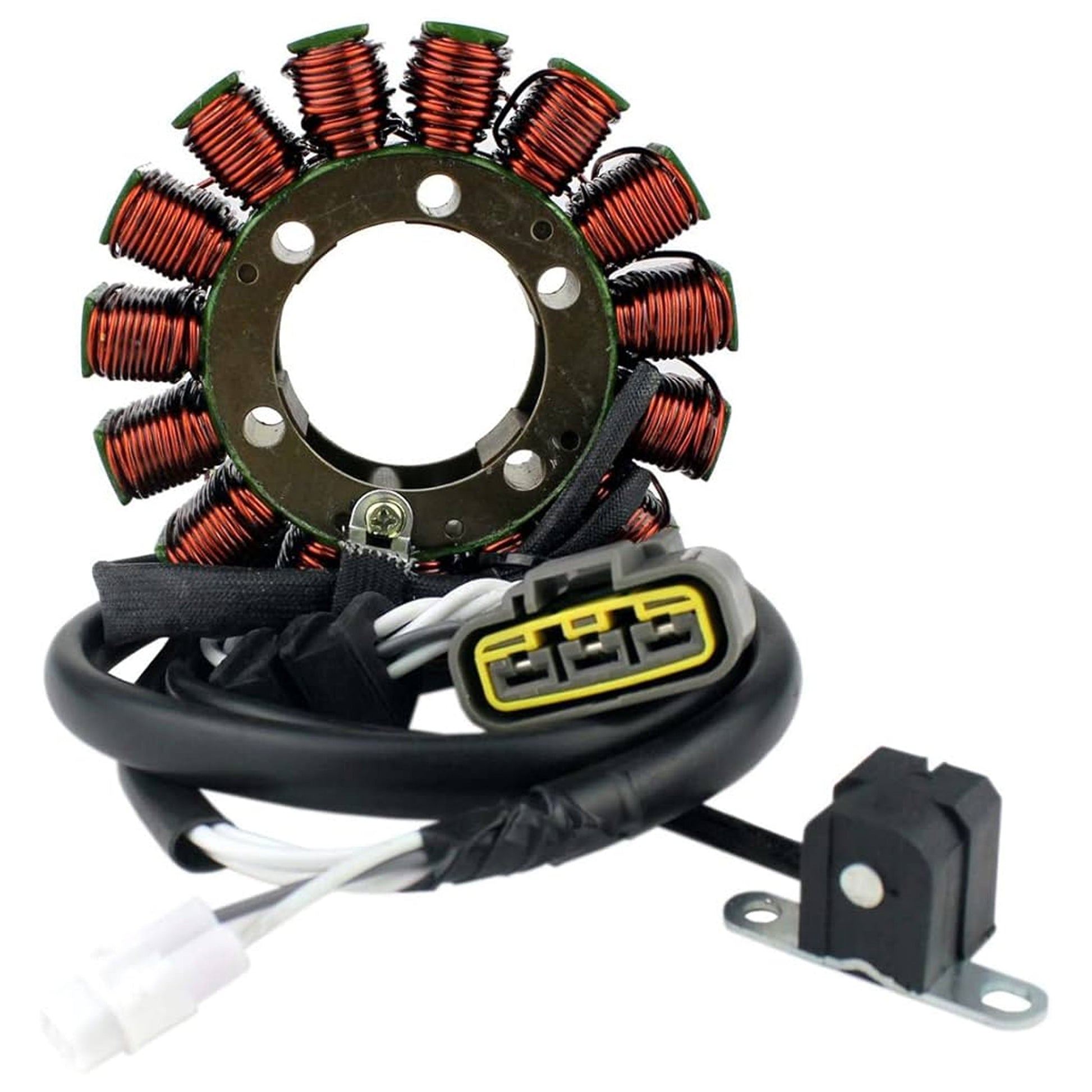

STATOR COIL YAMAHA GRIZZLY YFM550 09-14, YFM700 07-23, KODIAK 700 19-24

Yamaha ATV
2007-2015    YFM 550 Grizzly
2007-2015    YFM 700 Grizzly

Stator BRONCO AT-01475

I.D.: 42 MM. O.D: 105.2 MM.
5 Wires / 2 Connectors. 15 Coils.
Hole: 6.6 MM. C to C: 47 MM.
Pickup coil hole: 5.2 MM. C to C: 33.4 MM.
Wire length: 9 CM. Wire length: 79 / 134 CM.

- Meets or exceeds OEM quality.
- Direct oem replacement.
- Stock mounting locations.
- Designed to handle increased power loads.
- Best value for money
- All are made to OEM specifications and match the original equipment in appearance.
- All Electrical Parts are 100% fully factory tested before shipping.
- Due to the nature of electrical components they are non returnable and have no warranty.
- BRONCO products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image before ordering to avoid mistakes.

- Note. No Returns on Electrical Parts.

OEM Cross Reference Numbers Only:
28P-81410-00-00  , 28P-81410-01-00 , 3B4-81410-00-00 , 340-58158

Yamaha     YFM 550 DE Grizzly 4x4          2014

Yamaha     YFM 550 DH Grizzly 4x4 Hunter          2014

Yamaha     YFM 550 FG Grizzly 4x4          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGH Grizzly 4x4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGP Grizzly EPS 4x4          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGPH Grizzly EPS 4x4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGPSE Grizzly 4x4 EPS SE          2009

Yamaha     YFM 550 PE Grizzly EPS 4x4          2014

Yamaha     YFM 550 PH Grizzly EPS 4x4 Hunter          2014

Yamaha     YFM 700 D Grizzly 4x4          2014, 2015

Yamaha     YFM 700 DH Grizzly 4x4 Hunter          2014

Yamaha     YFM 700 FG Grizzly 4x4          2007, 2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGH Grizzly 4x4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGP Grizzly EPS 4x4          2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGPDU Grizzly 4x4 Ducks          2007, 2008, 2009

Yamaha     YFM 700 FGPH Grizzly EPS 4x4 Hunter          2007, 2008, 2013

Yamaha     YFM 700 FGPOH Grizzly 4x4 Outdoorsman Edition          2007

Yamaha     YFM 700 FGPSE Grizzly EPS 4x4 SE          2007, 2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 PE Grizzly EPS 4x4          2014

Yamaha     YFM 700 PF Grizzly EPS 4x4          2015

Yamaha     YFM 700 PH Grizzly EPS 4x4 Hunter          2009, 2010, 2011, 2012, 2014, 2015

Yamaha     YFM 700 PS Grizzly EPS 4x4 SE          2014, 2015

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
