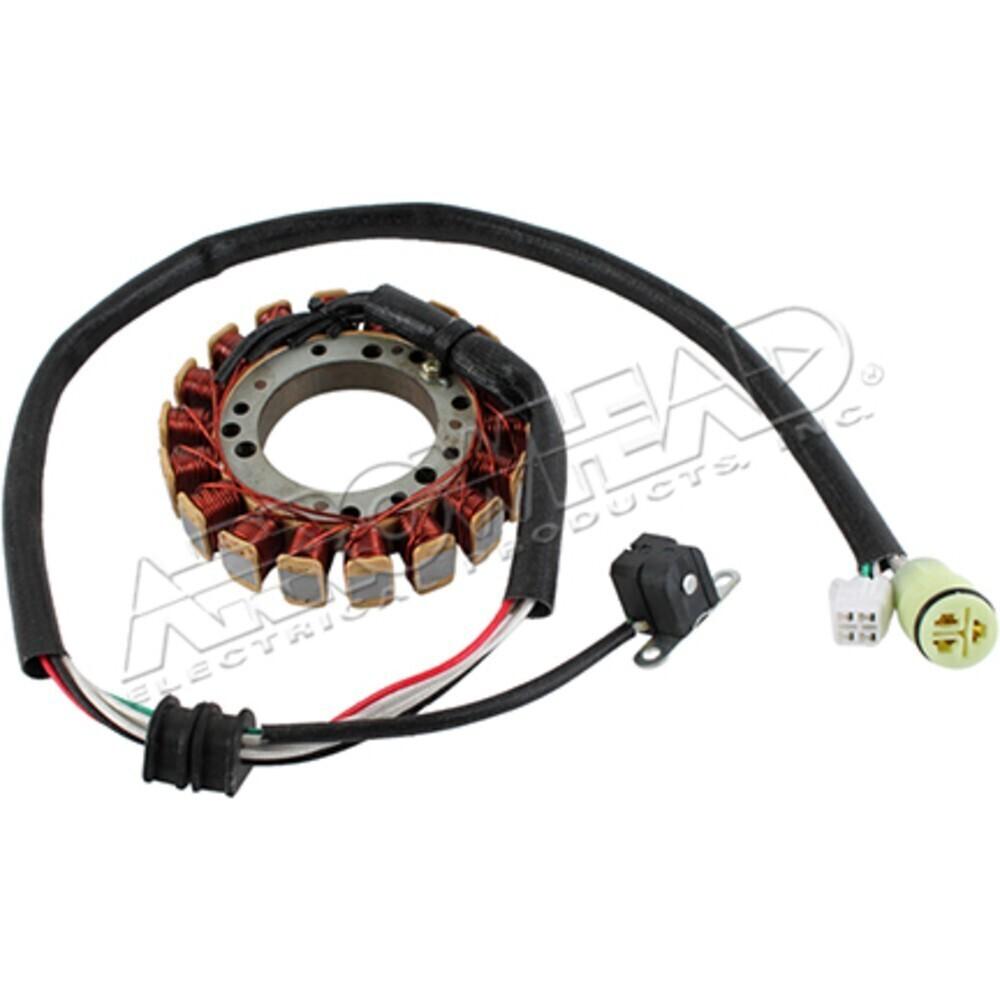

STATOR COIL YAMAHA GRIZZLY YFM400 07-08, 450 07-11, 660 02-08, KODIAK 400 00-06

This high-quality stator coil is a direct OEM replacement designed for Yamaha models, ensuring reliable performance and durability. Engineered to meet or exceed OEM standards, it is built to handle increased power loads and is factory-tested for 100% reliability. Ideal for replacing worn or damaged components, this stator provides excellent value and consistent operation.

Technical Specifications:

• Voltage: 12V
• External Diameter (OD): 115.1mm
• Internal Diameter (ID): 53.7mm
• Width (OD): 23.3mm
• Width (ID): 9.7mm
• Power Coils: 18
• Mounting Holes: 3 (6mm)
• Pick-Up Resistance: 430 Ohm
• Cord Lengths: 29 inches (2 plugs) / 5.5 inches (to grommet)
• With Sensor: Yes

Features:

• OEM Quality: Meets or exceeds original specifications.
• Direct Replacement: Ensures seamless installation.
• Factory Tested: 100% tested for reliability and performance.
• Increased Power Load Capacity: Designed for demanding applications.
• Reliable Performance: High-quality replacement with satisfaction guarantee.
• Important Note: Electrical parts are non-returnable. Verify images and connection plugs before ordering.

Cross Reference Numbers:
5GH-81410-00-00, 5ND-81410-00-00, 1-968H RICKS, 5KM-81410-00-00, 5KM-81410-01-00

Compatible Yamaha Models:

• Grizzly YFM660 (2002-2004)
• Grizzly YFM66 (2005-2008)
• Rhino YXR660 (2004-2007)
• Kodiak 400 (2000-2006)
• Kodiak 450 (2003-2006)
• Grizzly 400 (2007-2008)
• Grizzly 450 (2007-2011)
• Wolverine 450 (2007-2010)
• YXR66F Rhino (2004-2007)

Part Number: 44-9752.AH

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
