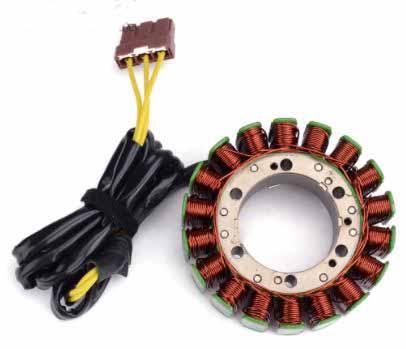

STATOR COIL APRILIA RSV1000 Mille R 04-08, TUONO 06-09, TUONO R 07-11

The stator coil is a direct OEM replacement component designed for specific Aprilia motorcycle models. It functions as a crucial part of the motorcycle's charging system, converting mechanical energy into electrical energy to power the vehicle's electrical components and charge the battery.

Features:

• Direct OEM replacement
• Designed to handle increased power loads
• Meets or exceeds OEM quality standards

Specifications:

• Function: Converts mechanical energy into electrical energy for the motorcycle's electrical system
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Wire to wire resistance: Yellow to yellow = 0.4 ohms ±20%

Dimensions:

• Interior diameter: 55 mm
• Exterior diameter: 115 mm
• Thickness: 24 mm

Wire lengths:

• Stator to grommet: 100 mm
• Grommet to plug: 950 mm

Vehicle Fitment:

• Aprilia RSV1000R: 2004–2008
• Aprilia RSV1000 Tuono: 2006–2009
• Aprilia ETV1000 Caponord ABS: 2001–2009
• Aprilia ETV1000 Caponord Rally Raid: 2003–2006
• Aprilia RST1000 Futura: 2001–2004
• Aprilia RSV1000R Factory (RRK0): 2006–2010
• Aprilia RSV1000R (RR00): 2004–2010
• Aprilia RSV1000 Tuono R Factory (RRM00): 2007–2011

Cross-Reference OEM Part Numbers:

• 268304
• AP0685330

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
