DIGITAL SPEEDOMETER & SENSOR, CAN NOT BE CALIBRATED (Magnet not included)

DIGITAL SPEEDOMETER & SENSOR

Spedo works by magnetic pickup (Magnet not included) Magnet and pickup need to be mounted 65-66mm from the CENTER of the spindle. Please check speedo calibration after installation.

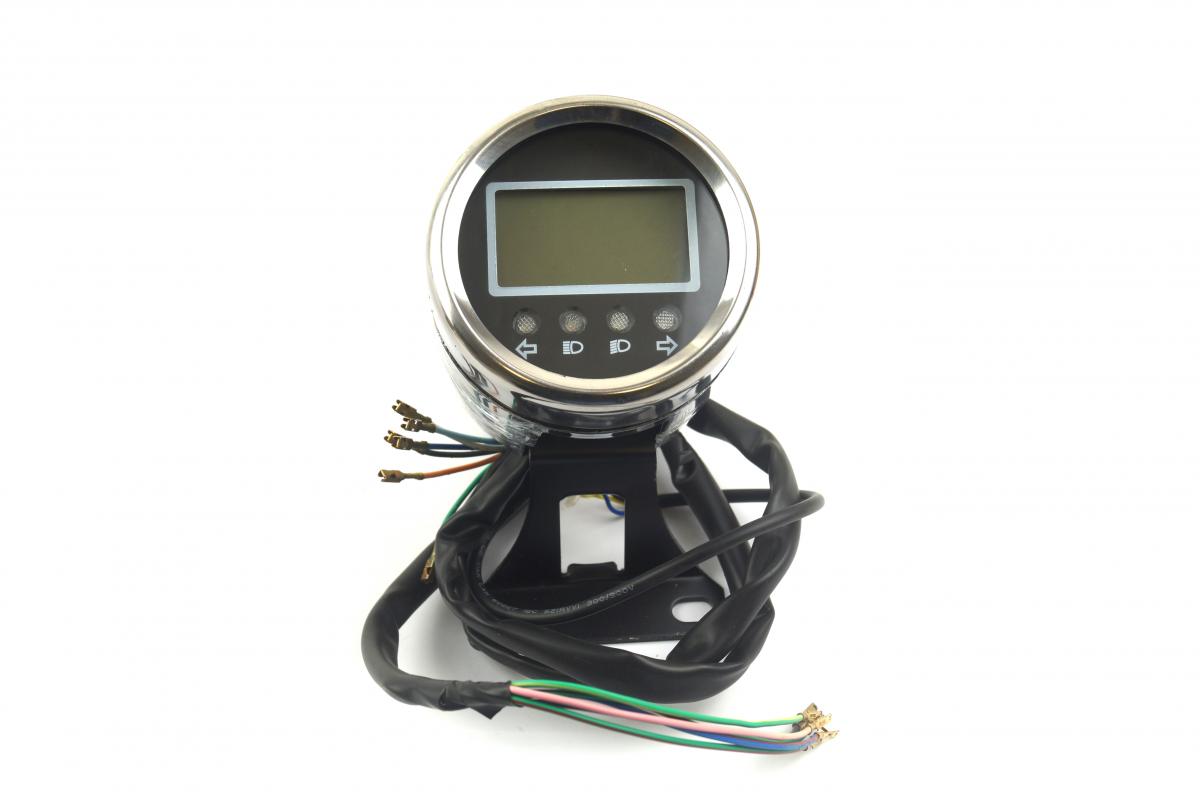

Digital speedometer unit and sensor. Speedo head diameter 95mm speedo body length 105mm. Easy to mount with bracket attached to speedo head(65mm Centre-Centre mounting holes.) Digital display with LED illumintaion for indicators and High/Low Beam headlights. All wires included, main wire length 680mm. M12 x 1.25mm speedo sensor. Chrome effect finish.
THE BELOW IS A GUIDE FROM WHAT WE HAVE FOUND WHEN TESTING THE ITEM. WE ARE NOT HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE PRODUCT.
WIRING.
LIVE (POSITIVE) - BLACK WIRE
EARTH (NEGATIVE) - GREEN WIRE
LIGHT BLUE, DARK BLUE, WHITE & ORANGE - REQUIRE POSITIVE FEEDS FOR LEFT AND RIGHT INDICATORS, MAIN BEAM & DIP LED'S
ALL OTHER COLOURS, PINK, PURPLE, RED/BLUE, RED/GREEN, GREEN/BLACK & GREEN/YELLOW REQUIRE GROUNDS FOR GEAR POSITIONS AND FUEL GAUGE LEVEL.

Part No. 44-9620

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
