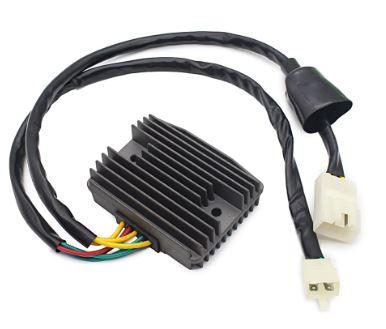

REGULATOR RECTIFIER HONDA VTX1300 03-09, CB900F Hornet 04-07

Honda VTX1300 2003-2009,

Honda CB919 CB900 Hornet 900 2002-2007

Honda CB900F Hornet SC48B 2004

Honda CB900F Hornet SC48B 2005- 2006

Honda VTX1300 S3/S4/S5/S6/S7/S8 2003-2009

�

Aprilia Mana 850 GT850 2007-2013

CB919 CB900 Hornet 900 CB900F Hornet SC48B

�

Technical specifications

• Tension (voltage) 12 [V]
• Corriente (current) 35 [A]
• Tipo de entrada (input type) TRIFASICO
• Tecnologia (technology) SCR
• Tipo de salida (output type) CC
• Alto (height) 28 [mm]
• Ancho (width) 80 [mm]
• Largo (length) 110 [mm]
• Entre centro (pitch) 85 [mm]
• Con sensor (with sensor) NO

�

Part No. 44-6330.AH

�

- Meets or exceeds OEM quality.

- Direct oem replacement.

- All products are factory tested for 100% reliability at point of sale

- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.

- Note. No Returns on Electrical Parts.

�

Cross reference numbers ONLY.

31600-MEA-670 HONDA, 31600-MEA-741 HONDA, SH579DA SHINDENGEN, SH579DB SHINDENGEN,

Dimension 110mm L x 80mm W x 28.6mm T Plug #1 (2) Red Wires (Positive), (2) Green Wires (Ground) Plug #2 (3) Yellow Wires (Charging Coil) Notes: Boot Over Plug #2 Notes: Wires (Incl. Plugs) Both 22 Inches OAL. RECTIFIER / REGULATOR 12V. Arrowhead AHA6113

Honda VTX S 1300 from 2003 to 2004 31600-MEA-670

Honda VTX C 1300 2004 31600-MEA-670

Honda VTX S 1300 from 2005 to 2009 31600-MEA-741

Honda VTX R 1300 from 2005 to 2009 31600-MEA-741

Honda VTX C 1300 from 2005 to 2009 31600-MEA-741

Reemplazo Shindengen SH579DB

�

�

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
