REG-REC SUZUKI DR650R/SE 92-95, VS1400 05-09, VS800GL 98-09
REG-REC SUZUKI DR650R/SE 92-95, VS1400 05-09, VS800GL 98-09
Couldn't load pickup availability
Suzuki
DR 650cc (1992 - 1995)
VS GL Intruder 600cc (1996 - 1997)
VS GL Intruder 800cc (1992 - 2004)
VS S50 Boulevard 800cc (2005 - 2009)
VS GLP Intruder 1400cc (1996 - 2004)
VS S83 Intruder 1400cc (2005 - 2009)

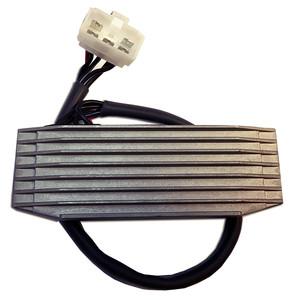

RECTIFIER / REGULATOR 12V ASU6025
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 35 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 25 [mm] |
| Ancho (width) | 49 [mm] |
| Largo (length) | 145 [mm] |
| Entre centro (pitch) | 129 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Reemplazo | Shindengen | SH576A-12 | |||
| Suzuki | DR | 650 | from 1992 to 1995 | 32800-12E00 | |
| Suzuki | VS | GL Intruder | 600 | from 1996 to 1997 | 32800-12E01 |
| Suzuki | VS | GL Intruder | 800 | from 1992 to 2004 | 32800-12E01 |
| Suzuki | VS | S50 Boulevard | 800 | from 2005 to 2009 | 32800-12E01 |
| Suzuki | VS | GLP Intruder | 1400 | from 1996 to 2004 | 32800-12E01 |
| Suzuki | VS | S83 Intruder | 1400 | from 2005 to 2009 | 32800-12E01 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Note. No Returns on Electrical Parts. �
Part No. 44-6093.AH
Cross reference numbers ONLY.
SH576A-12 SHINDENGEN, 32800-12E00, 32800-12E01,
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
