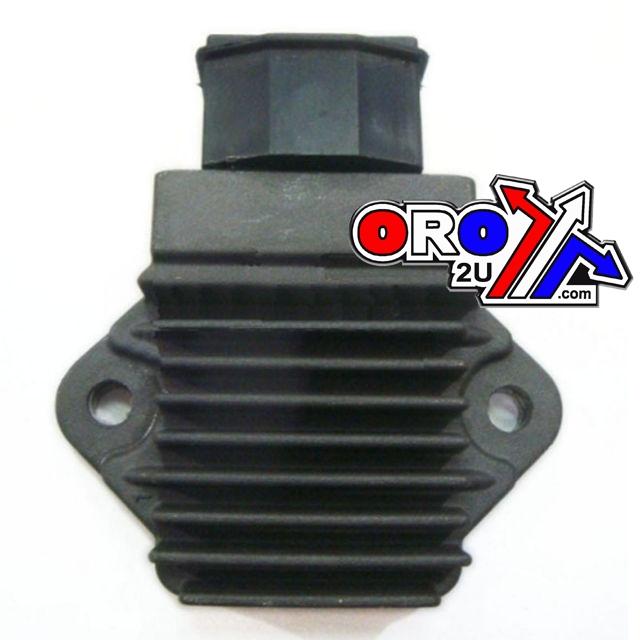

REG-REC HONDA CB600F 02-06, CBF600 04-07, CBR125R 04-08, FES125 98-02, NES125
REG-REC HONDA CB600F 02-06, CBF600 04-07, CBR125R 04-08, FES125 98-02, NES125
Couldn't load pickup availability
HONDA
CB HORNET 600 (1998 a 2006)
CB F 600 2004 CB S 600 (2004 a 2007)
CB Nighthawk A/AC 250 (1991 a 2000)
CB F 400 (1989 a 1990)
CBR A/AC 900 (1993 a 1999)
CBR F3 Hurricane A/AC 600 (1995 a 1998 )
CBR F4 Hurricane A/AC 600 (1999 a 2000)
CBR SE Hurricane A/AC 600 1998
CBR SJR Replica A/AC 600 1996
CBR RR W X SC33 900 (1992 a 1999)
CBR F2 Hurricane A/AC 600 ( 1991 a 1994)
NTV DEAUVILLE 650 (1998 a 2001)
NV C2 V W X 750 (1997 a 2004)
VT SHADOW 750 (1997 a 2003)
VT CA/CAC/CD/CD2 750 (1998 a 2000)
VTR F A/AC 1000 (1997 a 2000)
VTR NC29 / NC30 / NC31 1000 (2002 a 2005)
XLV Varadero 1000 (1999 a 2000)
CBR400 RR 86-93
CBR600 91-98 (M-W)
CBR699 FX/FY 99-00
CBR900 RR 92-99
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 35 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 30 [mm] |
| Ancho (width) | 72 [mm] |
| Largo (length) | 76 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| dze that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Honda | CB | HORNET | 600 | from 1998 to 2006 | 31600-KFG-861 |
| Honda | CB | F | 600 | 2004 | 31600-KFG-861 |
| Honda | CB | F | 400 | from 1989 to 1990 | 31600-KY2-702 |
| Honda | CB | Nighthawk A/AC | 250 | from 1991 to 2000 | 31600-KBG-008 |
| Honda | CB | S | 600 | from 2004 to 2007 | 31600-KFG-861 |
| Honda | CBR | F2/F3/F4 | 600 | from 1991 to 2000 | 31600-MV4-010 |
| Honda | CBR | A/AC | 900 | from 1993 to 1999 | 31600-MV4-010 |
| Honda | CBR | SE Hurricane A/AC | 600 | 1998 | 31600-MV4-010 |
| Honda | CBR | SJR Replica A/AC | 600 | 1996 | 31600-MV4-010 |
| Honda | CBR | RR W X SC33 | 900 | from 1992 to 1999 | 31600-MV4-010 |
| Honda | CBR | Hurricane | 600 | from 1991 to 2000 | 31600-MV4-010 |
| Honda | NTV | DEAUVILLE | 650 | from 1998 to 2001 | 31600-KFG-861 |
| Honda | NV | C2 V W X | 750 | from 1997 to 2004 | 31600-MV4-010 |
| Honda | VT | SHADOW | 750 | from 1997 to 2003 | 31600-MV4-010 |
| Honda | VT | CA/CAC/CD/CD2 | 750 | from 1998 to 2000 | 31600-MV4-010 |
| Honda | VTR | F A/AC | 1000 | from 1997 to 2000 | 31600-MV4-010 |
| Honda | VTR | NC29 / NC30 / NC31 | 1000 | from 2002 to 2005 | 31600-MV4-010 |
| Honda | XLV | Varadero | 1000 | from 1999 to 2000 | 31600-MV4-010 |
| Reemplazo | Shindengen | SH693-12 | |||
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Note. No Returns on Electrical Parts.
Part No. 44-3926.HA
Cross reference numbers ONLY.
SH701-12 SH691-AA RICKS 10-106, 595910, 31600-KFG-862, 31600-KFG-861, 31600-KFG-861/ 31600-KBG-008 / 31600-KY2-702 / 31600-MV4-010 31600-MV4-010
Bolts distance CENTRE TO CENTRE approx: 6cm
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
