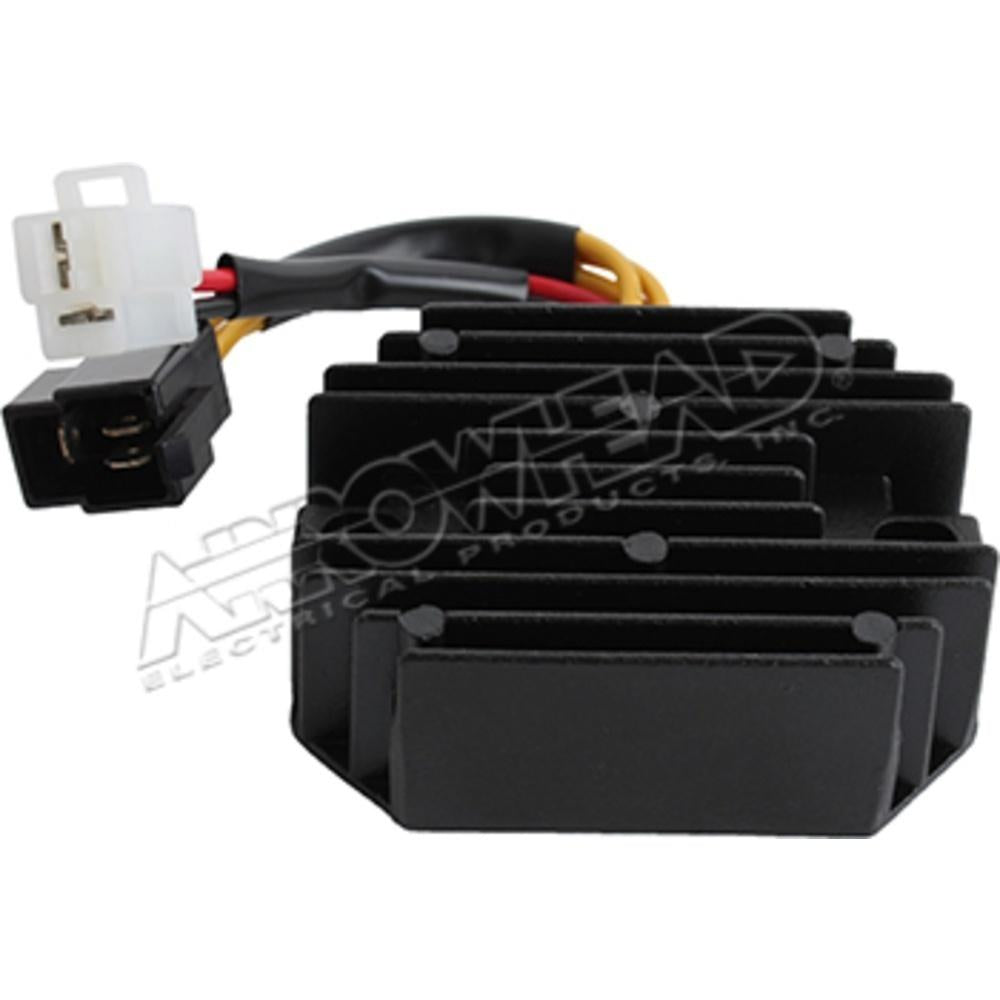

REGULATOR RECTIFIER SUZUKI LS650 SAVAGE 1986-2014, SV650 1999-2001

Suzuki:

Compatible Models:

• DR SE 250cc (1990-1995)
• DR SE 350cc (1990-1996) / (1997-1999)
• LS Savage 650cc (1986 to 1988)
• LS Savage LS650P K1 K2 K3 650cc (1996 to 2004)
• LS Savage LS650P K4 650cc (1996-2004)
• LS Boulevard LS650 S40 650cc (2005 to 2012)
• SV 650cc (1999-2020)

Technical Information:

• Voltage: 12 [V]
• Current: 35 [A]
• Input Type: THREE PHASE
• Technology: SCR
• Output Type: DC
• Height: 28 [mm]
• Width: 80 [mm]
• Length: 90 [mm]
• Between center (pitch): 67 [mm]
• With sensor: NO

DZE Products that Apply:

• Brand: Cagiva

• Model: Abductor

• Version: 650

• Displacement: from 2001 to 2005

• Year: -

• OEM code: -

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 350

• Year: from 1990 to 1996

• OEM code: 32800-14D10

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 350

• Year: from 1997 to 1999

• OEM code: 32800-14D11

• Brand: Suzuki

• Model: DR

• Version: (Details not specified)

• Displacement: 250

• Year: from 1990 to 1995

• OEM code: 32800-14D10

• Brand: Suzuki

• Model: LS

• Version: Savage LS650

• Displacement: 650

• Year: 1995

• OEM code: 32800-24B00

• Brand: Suzuki

• Model: LS

• Version: Savage LS650P K1 K2 K3

• Displacement: 650

• Year: from 1996 to 2004

• OEM code: 32800-24B01

• Brand: Suzuki

• Model: LS

• Version: LS650 Boulevard

• Displacement: 650

• Year: from 2005 to 2012

• OEM code: 32800-24B11

• Brand: Suzuki

• Model: LS

• Version: Savage LS650P K4

• Displacement: 650

• Year: from 1996 to 2004

• OEM code: 32800-24B10

• Brand: Suzuki

• Model: LS

• Version: Savage LS650

• Displacement: 650

• Year: from 1986 to 1988

• OEM code: 32800-24B00

• Brand: Suzuki

• Model: SV

• Version: (Details not specified)

• Displacement: 650

• Year: from 1999 to 2002

• OEM code: 32800-24B01

Features:

• Meets or exceeds OEM quality.
• Direct OEM replacement.
• All products are factory tested for 100% reliability at the point of sale.
• Designed to handle increased power loads.
• DZE Racing products are high-quality replacement parts and carry a guarantee of your satisfaction.
• Please check the image and connection plugs before ordering to avoid mistakes.
• Note: No Returns on Electrical Parts.

Dimensions: 80mm L x 90mm W x 28mm H; Hole Distance: 67mm

Cross Reference Numbers Only:

• ASU6015 ARROWHEAD
• 230-58039 J & N
• 717835 HI LEVEL
• SH535C-12 SHINDENGEN
• 32800-24B00 SUZUKI
• 32800-24B01 SUZUKI
• 32800-24B10 SUZUKI
• 32800-24B11 SUZUKI
• 32800-24B11 / 32800-24B00 / 32800-14D10 / 32800-24B01 / 32800-24B10 / 32800-24B11 / 32800-14D11

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
