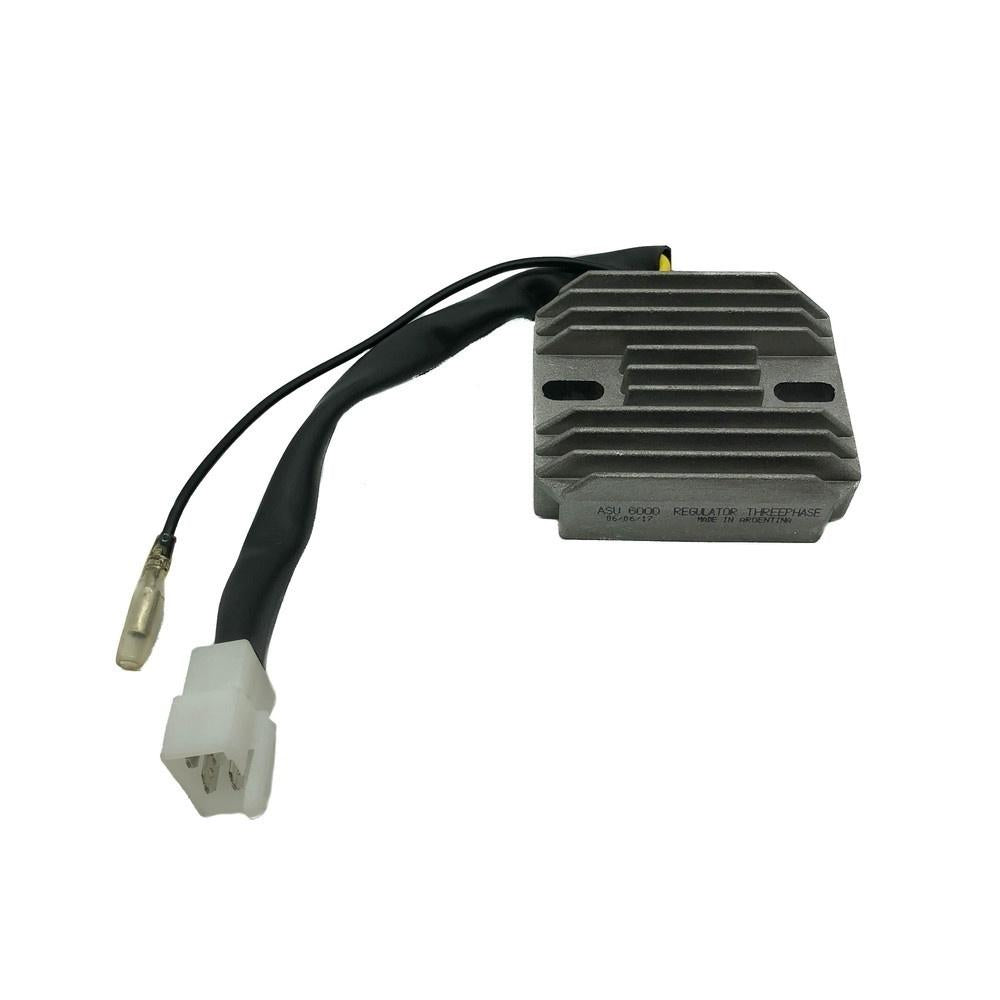

REG-REC SUZUKI LT230 85-93, GS1100E 82-83, GS550E 83-85, GSX1100E 82-83
REG-REC SUZUKI LT230 85-93, GS1100E 82-83, GS550E 83-85, GSX1100E 82-83
Couldn't load pickup availability
Suzuki
LS-F230 1986-87,
LS230G 1985-86,
GS750 KATANA L/T/S 1981-82,
GS750 KATANA E 1981-82,
GS650 GLT 1981-83,
GS650 GL 1981-83,
GS650 KATANA 1981-83,
GS550L 1983-86,
GS550 ESG 1983-86,
GS550 ESF 1983-86,
GS550 ESE 1983-86,
GS550 ES3 1983-86,
GS550 EF 1983-86,
GS550 E / ES 1983,
GS550 L / M 1980-82,
GS1100 L 16-VALVE 1980-83,
GS1100 EZ 16-VALVE 1980-83,
GS1100 E 16-VALVE 1980-83,
GS1100 G 1981-83,
LT250EF Quadrunner 250cc 1985-86
LT300E Quadrunner 300cc 1987-88
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Suzuki | - | 32800-43X51 | |||
| Suzuki | - | 32800-43X50 | |||
| Suzuki | GS | E / S | 450 | from 1984 to 1988 | 32800-35B00 |
| Suzuki | GS | E / ES | 1100 | from 1982 to 1983 | 32800-49420 |
| Suzuki | GS | L | 550 | from 1983 to 1986 | 32800-43400 |
| Suzuki | GS | G / GK / GL | 1100 | from 1982 to 1983 | 32800-49420 |
| Suzuki | GS | E | 550 | from 1983 to 1986 | 32800-43400 |
| Suzuki | GS | G | 1100 | 2002 | 32800-43400 |
| Suzuki | GS | G | 1100 | from 1982 to 1983 | 32800-43400 |
| Suzuki | GSX | E | 500 | from 1984 to 1985 | 32800-43400 |
| Suzuki | GSX | E | 550 | from 1983 to 1987 | 32800-43400 |
| Suzuki | GSX | D / XD | 1100 | 1983 | 32800-49430 |
| Suzuki | GSX | Z | 1100 | 1982 | 32800-49430 |
| Suzuki | GSX | E | 1100 | from 1982 to 1983 | 32800-49430 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Note. No Returns on Electrical Parts.
Part No. 44-3868
76mm L x 48mm W x 28mm T
Plug - (3) Yellow, (1) Red Wire 9.5 Inches OAL
(1) Black Ground Wire w/Bullet Connector 9 Inches OAL
(2) 6.5mm x 11.8mm Elongated Mounting Holes 48.3mm (inner), 72mm (outer)
SIZE. 80mm L x 70mm W X 28mm H
Cross reference numbers ONLY.
ASU6000 � � � ARROWHEAD � � �
ESP2336 � � � ARROWHEAD (OEM) � � �
230-58165 � � � J & N � � �
8099-1604 � � � PIC � � �
44-3600 � � � EMS � � �
717920 � � � HI LEVEL � � �
32800-24500 � � � SUZUKI � � �
32800-24501 � � � SUZUKI � � �
32800-35B00 � � � SUZUKI � � �
32800-43410 � � � SUZUKI � � �
32800-43X50 � � � SUZUKI � � �
32800-43X51 � � � SUZUKI � � �
32800-49120 � � � SUZUKI � � �
32800-49420 � � � SUZUKI � � �
32800-49430 � � � SUZUKI � � �
463981 � � � TUCKER ROCKY � � �
495842 � � � TUCKER ROCKY � � �
49-5842 � � � TUCKER ROCKY
�
Majority of our listings are for a direct replacement for your original part.
Our parts are made of quality and are designed to meet or exceed the original OEM Standards.
Our products are often a cost effective alternative to genuine OEM Parts.
Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
