AW Motorcycle Parts

STATOR COIL SUZUKI RM125 87-88, RM250 86-93, 4 Wire

STATOR COIL SUZUKI RM125 87-88, RM250 86-93, 4 Wire

Regular price £98.48 GBP
Regular price Sale price £98.48 GBP
Sale Sold out
Taxes included.
Quantity

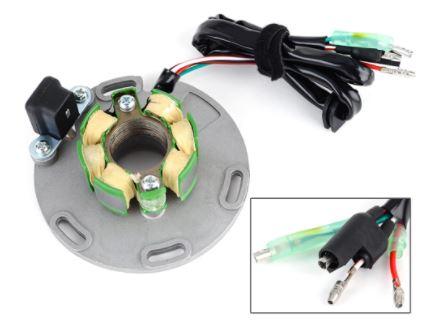

Stator Coil Suzuki

Compatibility:

  • RM125: 1987-1988
  • RM250: 1986-1993

The Stator Coils offered are heavy-duty three-phase coils that can be directly plugged in. They come complete with all necessary rubbers and an OEM-style plug end.

Product Features:

  • 4 Wire Connectors
  • Meets or exceeds OEM quality
  • Direct OEM replacement
  • Factory tested for 100% reliability at the point of sale
  • Designed to handle increased power loads

Please note that the color of the coil wrapping may vary. These products are from ORO, known for their high-quality replacement parts, and they carry a guarantee of your satisfaction.

Before ordering, please check the image to avoid any mistakes, as there are no returns on electrical parts.

Specifications:

  • Interior diameter: 27mm / 1.08"
  • Exterior diameter: 57mm / 2.27"
  • Pole's Thickness: 30mm / 1.18"
  • Pole's Width: 17mm / 0.67"
  • Number of wires: 4
  • Number of pins: 4
  • Number of plugs: 4
  • Number of fixation holes: 4
  • Number of poles: 8
  • Fixation holes length: 19mm / 0.75"
  • Bottom Length: 110mm / 4.33"

Cross Reference Numbers:

  • PSYCHIC MX-01354
  • 32101-01B32
  • 32101-36E00
  • 32101-00B30
  • 32101-00B31
  • 32101-01B30
  • 32101-01B31
  • 32101-01B32
  • 32101-28C00
  • XQ-394

OEM Replacements:

  • 32101-01B30
  • 32101-01B31
  • 32101-00B30
  • 32101-28C01
  • 32101-28C02
  • 32101-28C03
  • 32101-00B31
  • 32101-01B32
  • 32101-28C00

Compatible with RM01452.

Please make sure to verify the compatibility with your specific model before making a purchase.

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.



SKU:REF 44-0173.AAA
