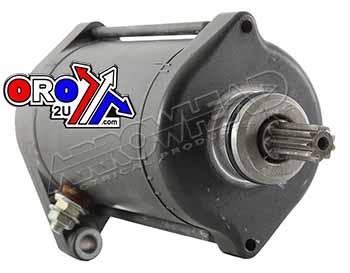

STARTER MOTOR YAMAHA XVS13 07-09, ARROWHEAD SMU0447, 410-58112

Starter motor designed for Yamaha XVS13A and XVS13CT 1300cc V-Star motorcycles, model years 2007-2009. Engineered for performance, it features a Permanent Magnet Direct Drive (PMDD) system with precision specifications for reliable operation and durability.

Features:

• Permanent Magnet Direct Drive (PMDD) system.
• 12-volt operation.
• Clockwise rotation.
• 9-spline gear design.
• Unthreaded mounting holes for easy installation.
• Sturdy 6mm x 1.0 B+ stud connection.

Specifications:

• Gear Outer Diameter: 11.4mm (0.449").
• Registration Outer Diameter: 28.7mm (1.130").
• Overall Length: 178.8mm (7.039").
• Mount Hole 1 Diameter: 6.6mm.
• Mount Hole 2 Diameter: 7.3mm.
• Mounting Ear Distance: 184.1mm (13.311").
• Center-to-Center Distance: 84.1mm.

Cross-Reference OEM Part Numbers:

• 3D8-81890-00-00
• 410-58112

Compatibility:

• Yamaha Motorcycle 2007-2009 XVS 1300 V-Star.
• Yamaha Motorcycle 2007-2009 XVS 1300 A V-Star Tourer.
• Yamaha Motorcycle 2007-2009 XVS 1300 CT V-Star Tourer.

Part Number: SMU0447

Majority of our listings are for a direct replacement for your original part.

Our parts are made of quality and are designed to meet or exceed the original OEM Standards.

Our products are often a cost effective alternative to genuine OEM Parts.

Please note: the models of bike we state in our listings are for general guidance only. Please make sure this item will fit your bike before purchasing. Also, we cannot guarantee fitment to any non-UK models.
